Engine Oil Pan - Removal

REMOVAL





1. Disconnect negative battery cable (1).

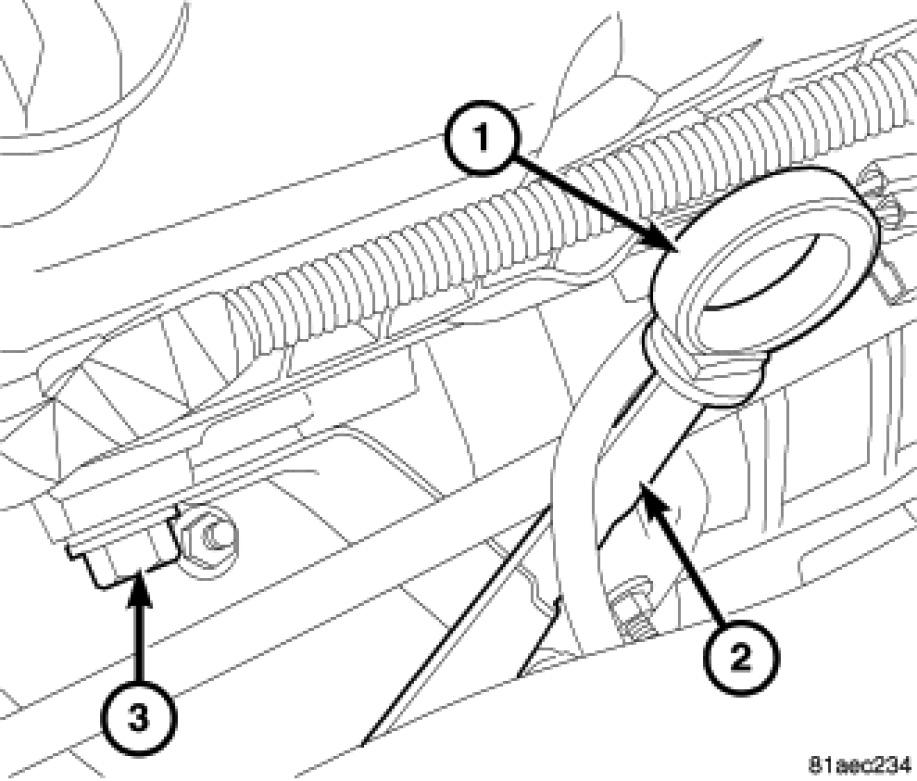

2. Remove the engine oil indicator (1).
3. Remove the engine oil indicator tube bolt (3).
4. Remove the engine oil indicator tube (2).
5. Raise and support the vehicle.




6. Remove the front crossmemberService and Repair.




7. Remove the crossover pipeExhaust Manifold - Removal.
8. Loosen the front exhaust manifoldExhaust Manifold - Removal.




9. Remove the oil pan bell housing bolts (1).




10. Drain the engine oil (1).
11. Remove the engine oil filter (2).
12. Remove the oil pan fasteners. Remove the oil pan.

NOTE: A small amount of oil will remain in the oil pan. Use care when removing the oil pan from the engine.

13. Remove oil pan gasket.
