Rear Engine Mount - AWD

REMOVAL





1. Remove the Power Transfer Unit (PTU). Removal

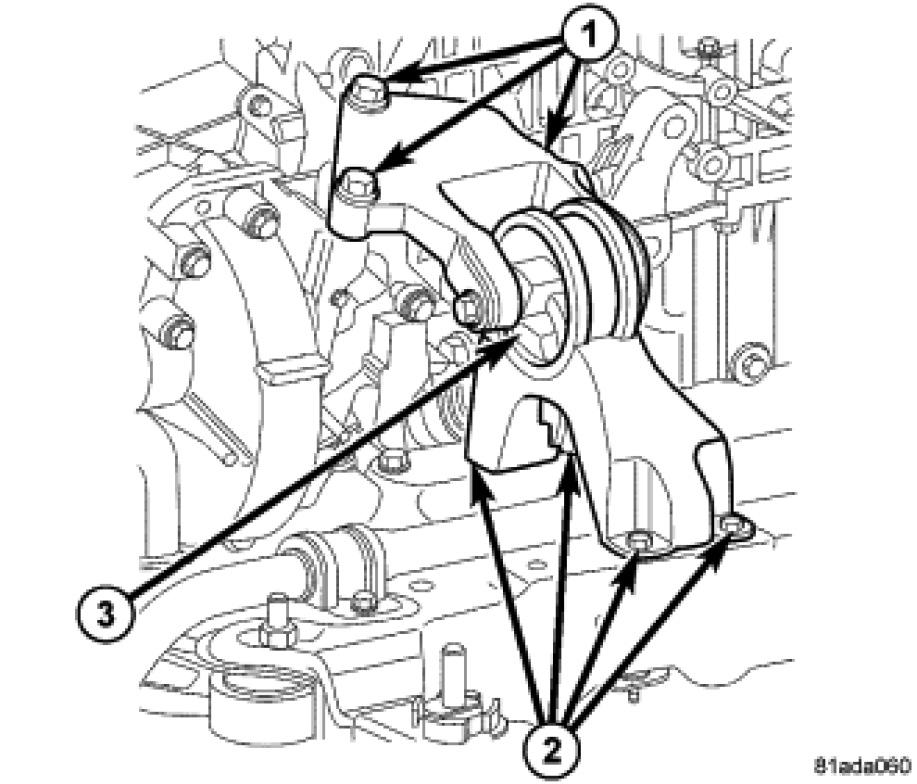

2. Remove the 3 top mount bracket bolts (1).
3. Remove the 4 lower mount to cradle bolts (2).
4. Remove rear mount (3).
