Left Engine Mount







REMOVAL





1. Disconnect negative battery cable.
2. Remove air cleaner housing assembly.Air Cleaner Housing - Removal
3. Support transmission with floor jack and wooden block.

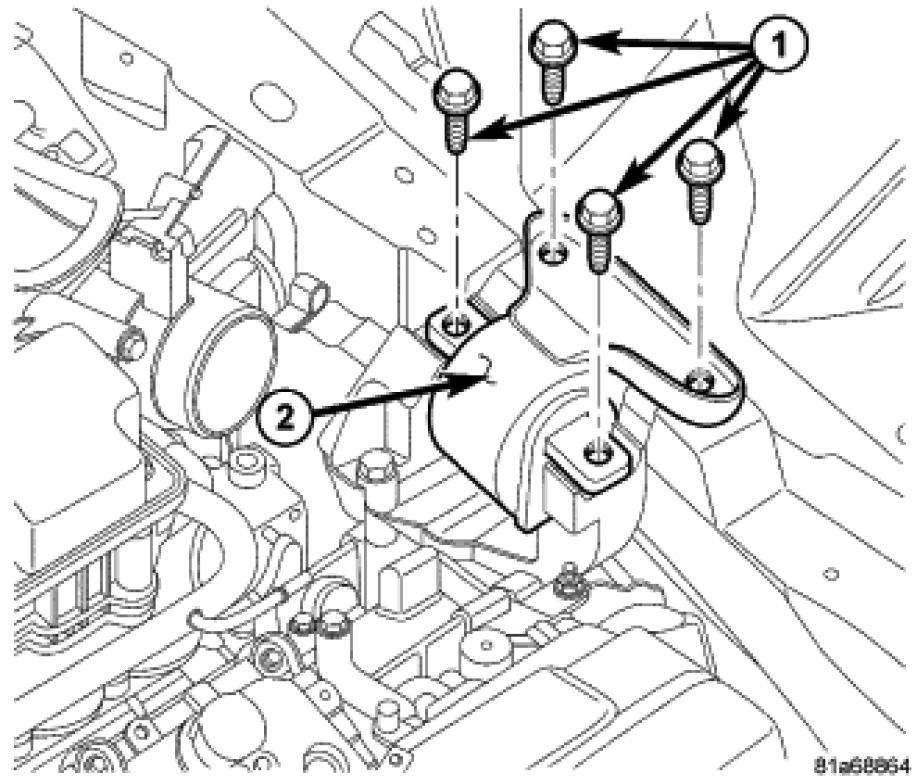

4. Remove the four vertical bolts (1).
5. Remove mount (2) from mounting bracket.
