Installation

INSTALLATION





1. Coat valve stems with clean engine oil and insert the valves into the cylinder head.

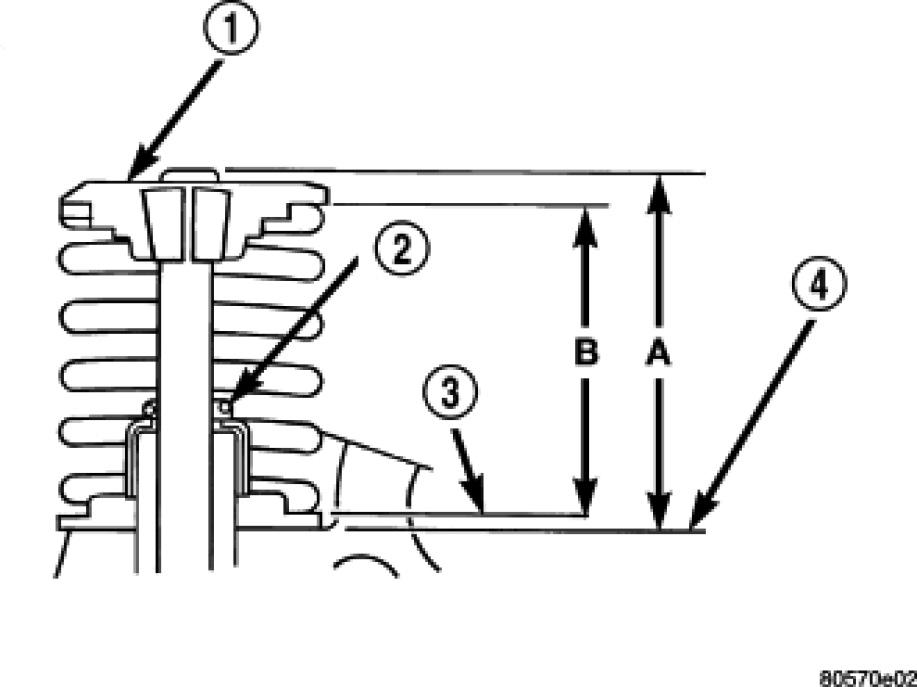

2. If valves or seats have been reground, check valve tip height (A). If valve tip height is greater than 43.65 mm (1.7185 in.) intake or 45.98 mm (1.8102 in.) exhaust, grind valve tip until within specifications. Make sure measurement is taken from cylinder head surface to the top of valve stem.
3. Install new valve stem seals.
4. Install valve springs Valve Springs - Installation.
5. Install cylinder head(s) Cylinder Head - Installation.
