Removal
Removal
REMOVAL
1.
Remove cylinder head cover(s).
Cylinder Head Cover - Removal
2.

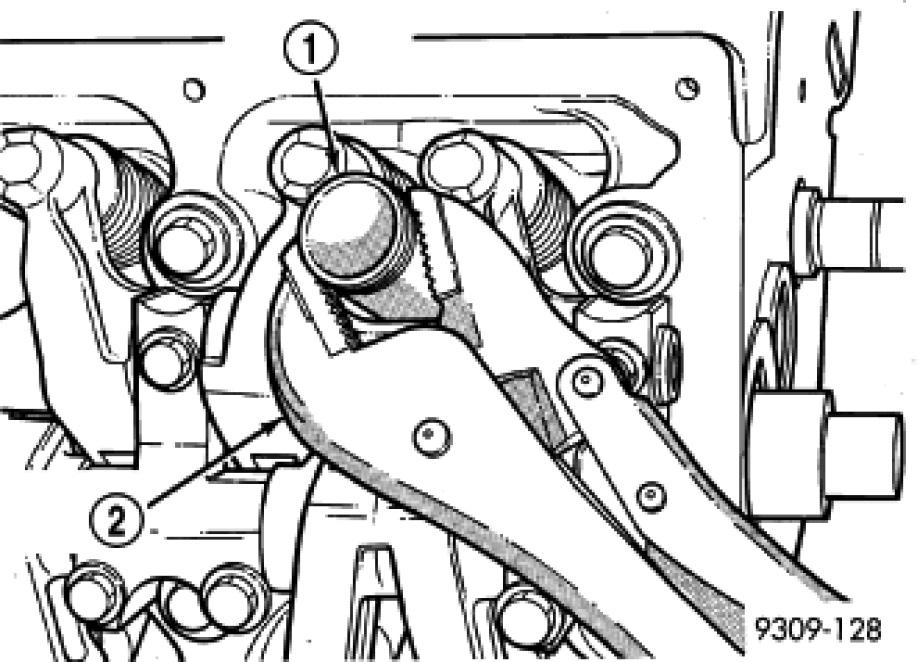

Using suitable locking pliers, remove the tube (1) from the cylinder head and discard tube.
3.
Clean area around
spark plug
with Mopar(R) Parts Cleaner or equivalent.
