Installation

INSTALLATION

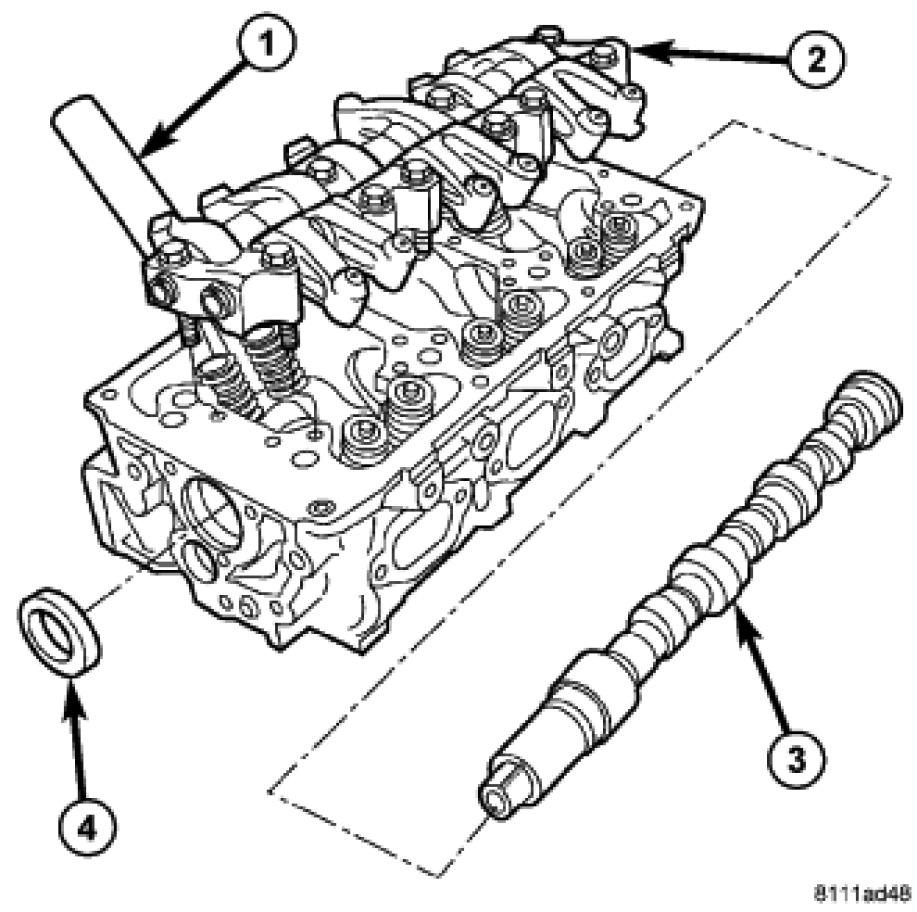

1. Apply Mopar(R) Stud and Bearing Mount to a new tube (1) approximately 1 mm (0.039 in.) from the end of tube, in a 3 mm (0.118 in.) wide area.
2. Install sealer end of tube (1) into the cylinder head. Then carefully install the tube (1) using a hardwood block and mallet. Install the tube (1) until it is seated into the bottom of the bore.
3. For spark plug tube (1) seal replacement, Cylinder Head Cover - Removal.
4. Install cylinder head cover(s). Cylinder Head Cover - Installation
