INSTALLATION





1. Clean cylinder head and cover mating surfaces. Inspect and replace gasket and seals as necessary.
2. Using a suitable pry tool, carefully remove tube seals (2).
3. Position new seal with the part number on seal facing cylinder head cover.

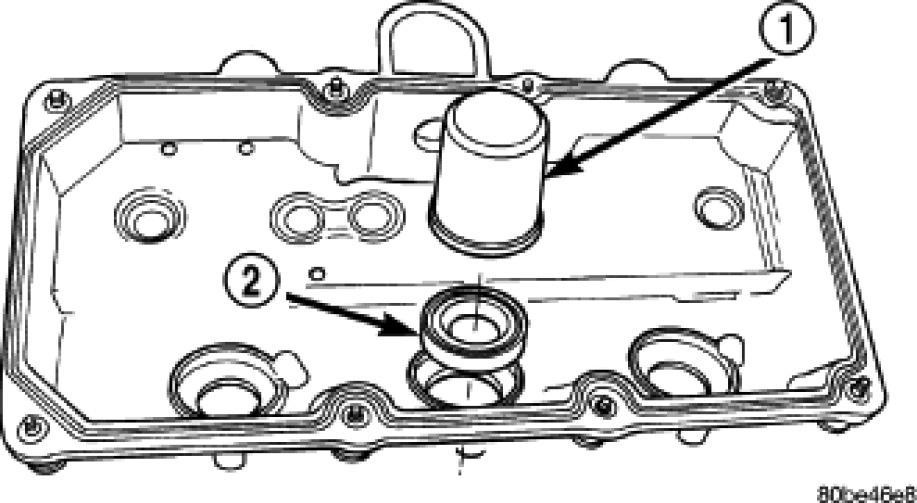

4. Install seals using Special Tool MD-998306 (1).




5. Install cylinder head cover bolts (4) and tighten to 10 Nm (90 in. lbs.).
6. Reconnect the wire harness retainers (1) to the valve cover.
7. Install the ignition coils.
8. Connect the ignition coil electrical connectors (2).
9. Reconnect the makeup air hose (3).
10. Install upper intake manifold Intake Manifold - Installation.
11. Connect negative battery cable.
