Left

INSTALLATION





1. Clean cylinder head and all gasket sealing surfaces. Inspect and replace gasket and seals as necessary.

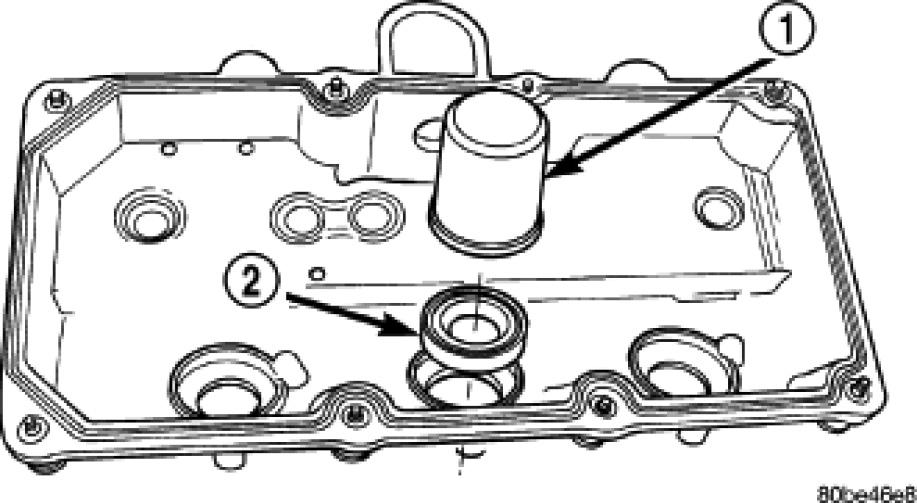

2. Using a suitable pry tool, carefully remove spark plug tube seals (2).
3. Position new seal with the part number on seal facing cylinder head cover.




4. Install seals using Special Tool MD-998306 (1).




5. Install cylinder head cover and bolts (4). Tighten to 10 Nm (90 in. lbs.).
6. Install the PCV hose (3) (if required).
7. Position the wiring harness on the cylinder head cover.
8. Reinstall the wire harness retainers (2) around the perimeter of the valve cover.
9. Install the ignition coils.
10. Connect the ignition coil electrical connectors (1).
11. Connect negative battery cable.
