Camshaft - Installation

INSTALLATION





NOTE: Care must be taken not to scrape or nick the camshaft journals when installing the camshaft into position.

1. Lubricate camshaft bearing journals, camshaft lobes and camshaft seal with clean engine oil and install camshaft into cylinder head.




2. Install the camshaft sprocket.Timing Belt & Sprockets - Installation

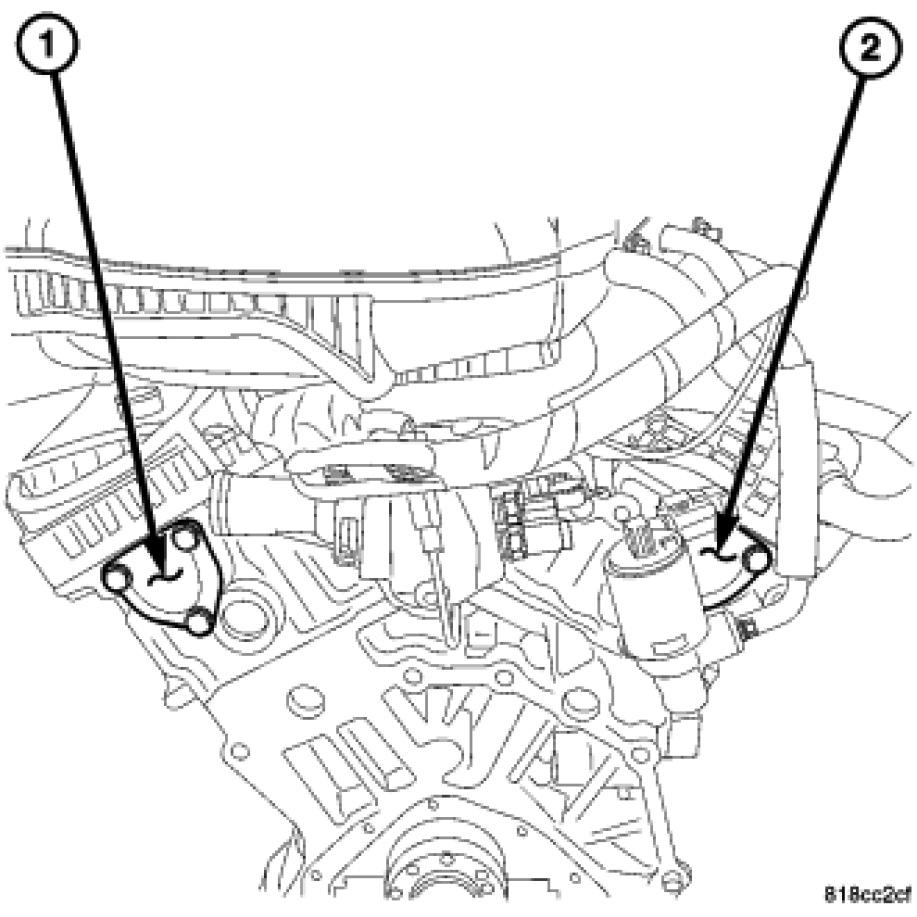

3. Install the camshaft thrust plate (1) or (2). Clean the mating surfaces and apply the appropriate sealer as necessary. Torque fasteners to 28 Nm (250 in. lbs.).
4. If necessary, install the EGR Valve assembly and Powertrain Control Module (PCM).
5. Install the rocker arm assembly.
