Engine Coolant Temperature Sensor - Installation

3.5L

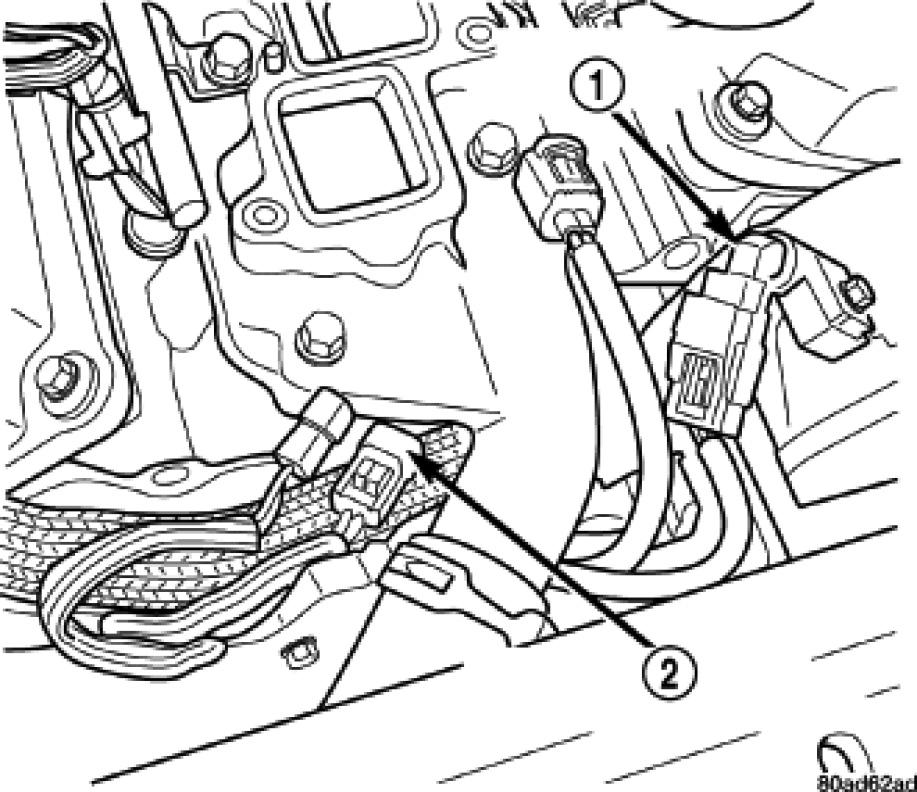

1. Install engine coolant temperature sensor (2). Tighten sensor to 28 Nm (20 ft. lbs.) torque.
2. Attach electrical connector to sensor.
3. Connect negative battery cable.
