Electronically Controlled Clutch (ECC)

U1415-IMPLAUSIBLE/MISSING VEHICLE CONFIGURATION RECEIVED

For a complete wiring diagram Consult Diagrams/Electrical

- When Monitored:
Continuously with the ignition on.

- Set Condition:
When the All Wheel Drive (AWD) Module detects an incorrect CAN messages from the Engine Control Module (ECM) or the Totally Integrated Power Module (TIPM).





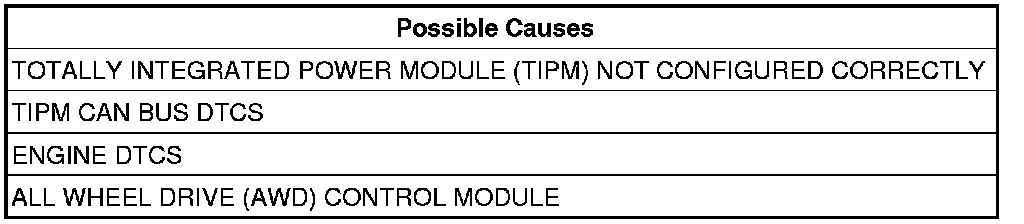

Diagnostic Test

1. CHECK IF TIPM CAN BUS DTC'S ARE PRESENT
With the scan tool, read TIPM DTCs.
Are there any TIPM CAN BUS DTC's present?

Yes

- Diagnose and repair the DTC(s).
- Perform AWD VERIFICATION TEST - VER 1.AWD Control Module Verification Test

No

- Go to 2

2. CHECK IF ENGINE DTC'S ARE PRESENT
With the scan tool, read Engine DTCs.
Are there any Engine DTC's present?

Yes

- Diagnose and repair the DTC(s).
- Perform AWD VERIFICATION TEST - VER. AWD Control Module Verification Test

No

- Using the schematics as a guide, check the AWD Module pins, terminals, and connectors for corrosion, damage, or terminal push out. Pay particular attention to all power and ground circuits. If no problems are found, replace the AWD Module.
- Perform AWD VERIFICATION TEST - VER. AWD Control Module Verification Test
