P1713

P1713-RESTRICTED MANUAL VALVE IN T2 RANGE

For a complete wiring diagramConsult Diagrams/Electrical

- When Monitored:
Ignition on, engine running with the gear shift selector in a valid forward gear.

- Set Condition:
This DTC sets whenever Transmission control system detects the manual valve is in the T2 range when it should be in OD. This is mainly an informational DTC.





Always perform the 62TE Pre-Diagnostic Troubleshooting procedure before proceeding.Testing and Inspection

Diagnostic Test

1. DETERMINING IF RELATED DTC'S ARE PRESENT
With the scan tool, check for other transmission DTC's
Are there any speed sensor or gear ratio DTCs present?

Yes

- Diagnose and repair the DTC(s).

No

- Go to 2

2. CHECK THE GEAR SHIFT CABLE FOR PROPER ADJUSTMENT
Check the Gear shift cable adjustment.
Also check the cable for possible binding or improperly routed.
Is the Gear shift cable properly adjusted and not binding or improperly routed?

Yes

- Go to 3

No

- Adjust the Shifter Assembly.
- Perform 62TE VERIFICATION TEST Transmission Verification Test

3. CHECK CUSTOMER DRIVING HABIT
This DTC can be set if the customer does not move the shift lever completely into the OD position (in between gears) causing the manual valve to be in the T2 position.
When this occurs, the feed port to the clutch is restricted, the transmission will declare neutral, and this DTC will set.
This DTC can also be set by simply bumping the shift lever toward neutral while accelerating.
With the scan tool, check the DTC EVENT DATA to help identify the conditions in which the DTC was set.

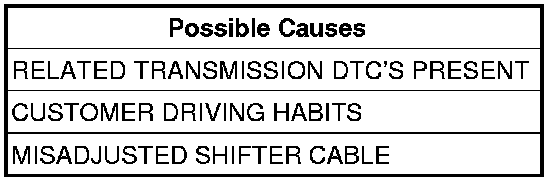

If there are no possible causes remaining, view repair.

Repair

- This DTC can be set by the shift lever in the wrong position or not completely in the OD position. Make sure the customer is properly informed.
- Perform 62TE VERIFICATION TEST Transmission Verification Test
