No Response From All Wheel Drive Control Module (AWD)

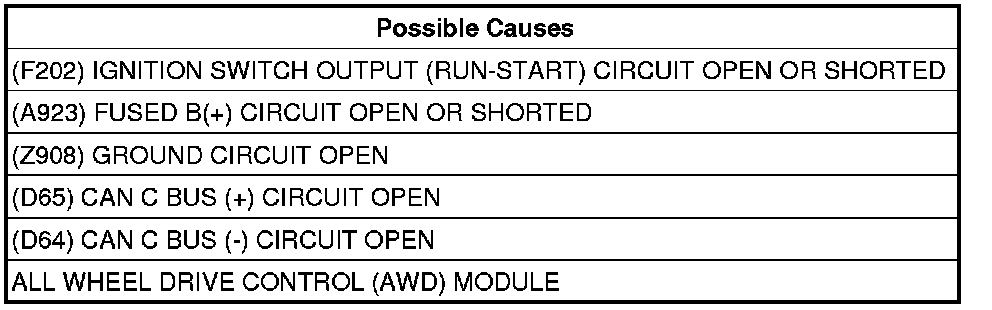

*NO RESPONSE FROM ALL WHEEL DRIVE CONTROL (AWD) MODULE

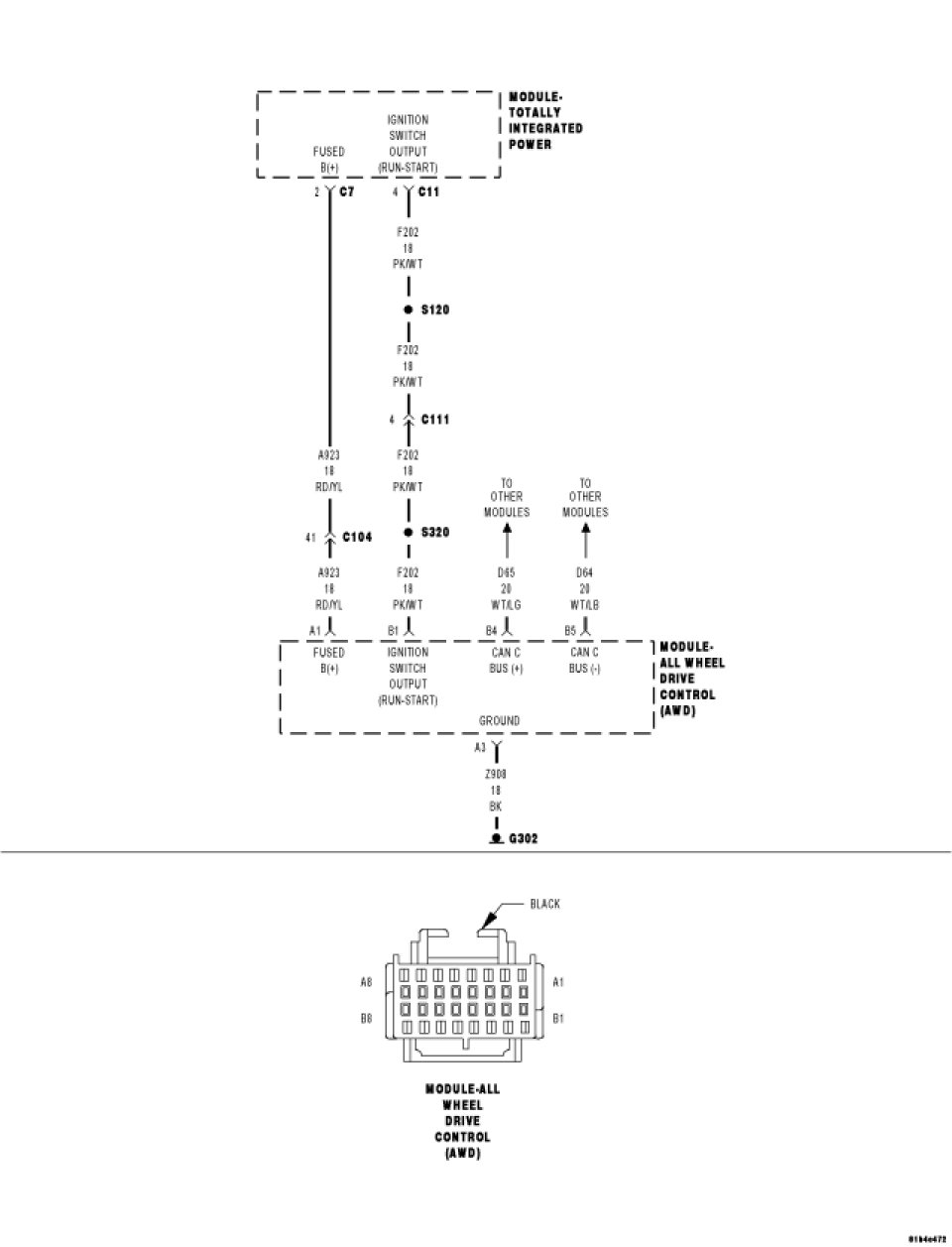

For a complete wiring diagram Consult Diagrams/Electrical.





Diagnostic Test

1. TEST FOR INTERMITTENT CONDITION
NOTE: Check for any TSB(s) related to the condition. If a TSB applies, perform the procedure outlined in the TSB before continuing.

Turn the ignition on.

NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.

With the scan tool, select ECU View.

NOTE: A red X will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.

NOTE: Check the TIPM for any active CAN C hardware DTC's, perform DTC before proceeding.

Does the scan tool display a red X next to the module?

Yes

- Go to 2

No

- The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.

2. (F202) IGNITION SWITCH OUTPUT (RUN-START) CIRCUIT OPEN OR SHORTED




Turn the ignition off.
Disconnect the AWD harness connector.
Turn the ignition on.

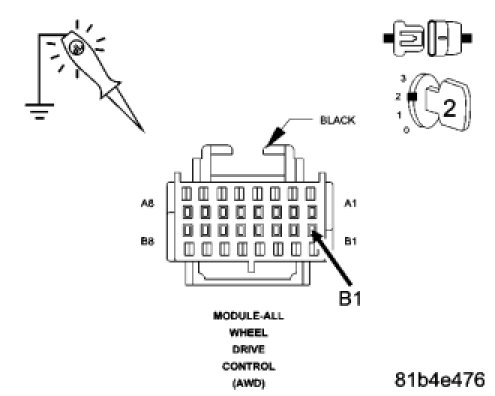

Using a 12-volt test light connected to ground, check the (F202) Ignition Switch Output (Run-Start) circuit.
Does the test light illuminate brightly?

Yes

- Go to 3

No

- Repair the (F202) Ignition Switch Output (Run-Start) circuit for an open or short.
- Perform the appropriate VERIFICATION TEST. Verification Tests

3. (A923) FUSED B(+) CIRCUIT OPEN OR SHORTED

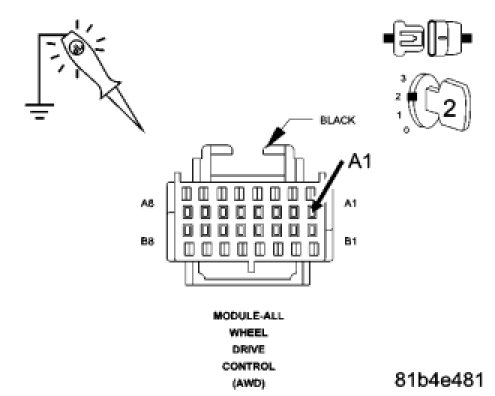

Using a 12-volt test light connected to ground, check the (A923) Fused B+ circuit.
Does the test light illuminate brightly?

Yes

- Go to 4

No

- Repair the (A923) Fused B+ circuit for an open or short.
- Perform the appropriate VERIFICATION TEST. Verification Tests

4. (Z908) GROUND CIRCUIT OPEN




Turn the ignition off.

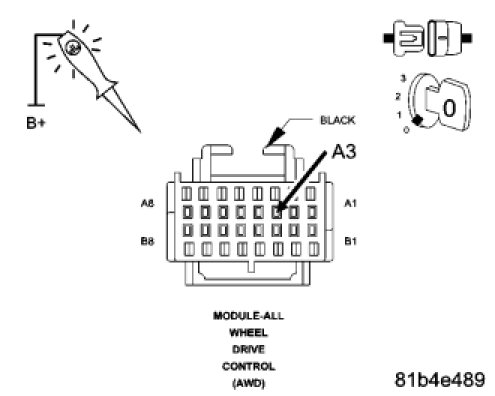

Using a 12-volt test light connected to 12-volts, check the (Z908) ground circuit.
Does the test light illuminate brightly?

Yes

- Go to 5

No

- Repair the (Z908) ground circuit for an open.
- Perform the appropriate VERIFICATION TEST. Verification Tests

5. (D65) CAN C BUS (+) CIRCUIT OPEN




Disconnect the TIPM C2 harness connector.

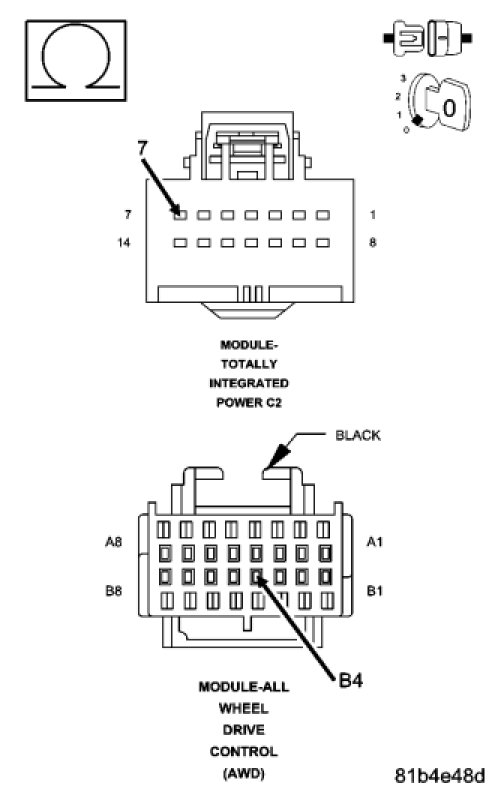

Measure the resistance of the (D65) CAN C Bus (+) circuit between the TIPM C2 harness connector and the AWD harness connector.
Is the resistance below 5.0 ohms?

Yes

- Go to 6

No

- Repair the (D65) CAN C Bus (+) circuit for an open.
- Perform the appropriate VERIFICATION TEST. Verification Tests

6. (D64) CAN C BUS (-) CIRCUIT OPEN

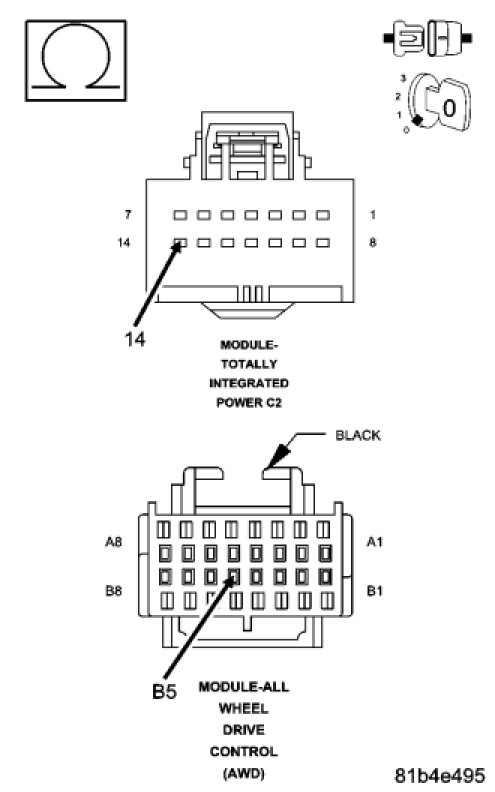

Measure the resistance of the (D64) CAN C Bus (-) circuit between the TIPM C2 harness connector and the AWD harness connector.
Is the resistance below 5.0 ohms?

Yes

- Replace and program the All Wheel Drive Control (AWD) Module.
- Perform the appropriate VERIFICATION TEST. Verification Tests

No

- Repair the (D64) CAN C Bus (-) circuit for an open.
- Perform the appropriate VERIFICATION TEST. Verification Tests
