Power Top - Convertible

B210E-BATTERY VOLTAGE HIGH - PTCM

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
With the ignition on.

- Set Condition:
Battery voltage greater than 16 volts for approximately 1 minute.





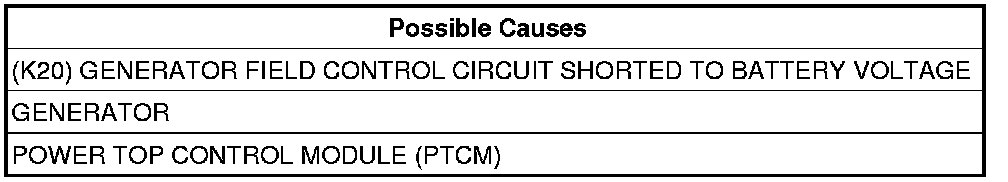

Diagnostic Test

1. CHECK FOR ANY POWERTRAIN CONTROL MODULES DTCS

NOTE: Make sure the Battery is in good condition. Using the Midtronics Battery Tester, test the Battery before continuing.

NOTE: Inspect the vehicle for after market accessories that may exceed the Generator System output.

NOTE: Make sure the generator drive belt is in good operating condition.

NOTE: Inspect the fuses in the IPM. If an open fuse is found, use the wire diagram/schematic as a guide, inspect the wiring and connectors for damage.

Turn the ignition on.
With the scan tool, read active PCM DTC's.
Does the scan tool display any active PCM DTC's?

Yes

Perform BODY VERIFICATION TEST - VER 1.Body Verification Test

No

- Check the above conditions that can cause a high voltage condition. Repair as necessary.
- Perform BODY VERIFICATION TEST - VER 1.Body Verification Test
