Removal

REMOVAL





NOTE: If valve body is replaced or reconditioned, the "Quick-Learn" Procedure must be performed Quick Learn Procedure.

1. Disconnect battery negative cable.
2. Disconnect gearshift cable from manual valve lever.
3. Remove manual valve lever from manual shaft.
4. Raise vehicle on hoist.

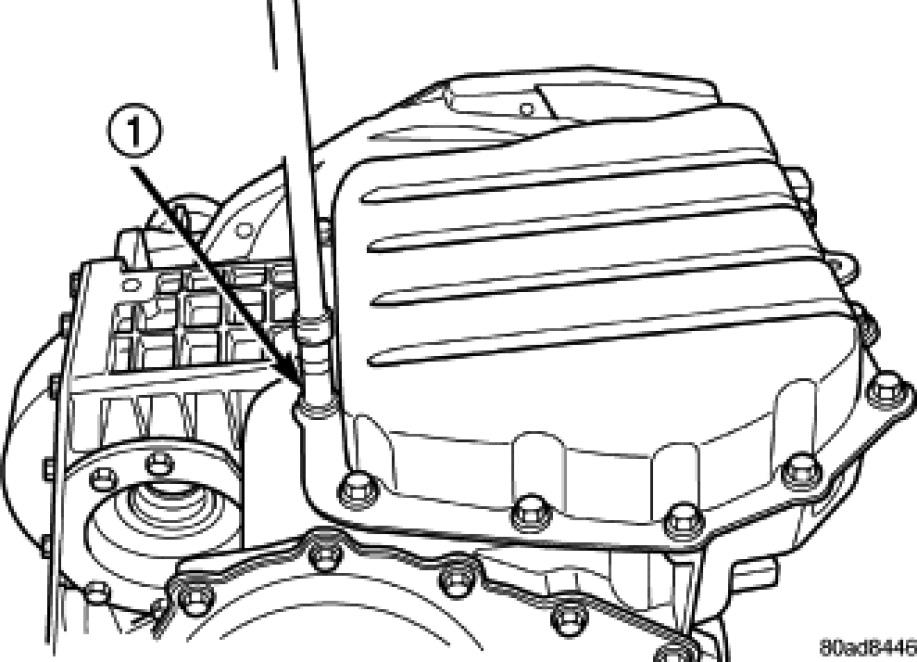

5. Remove oil pan bolts.




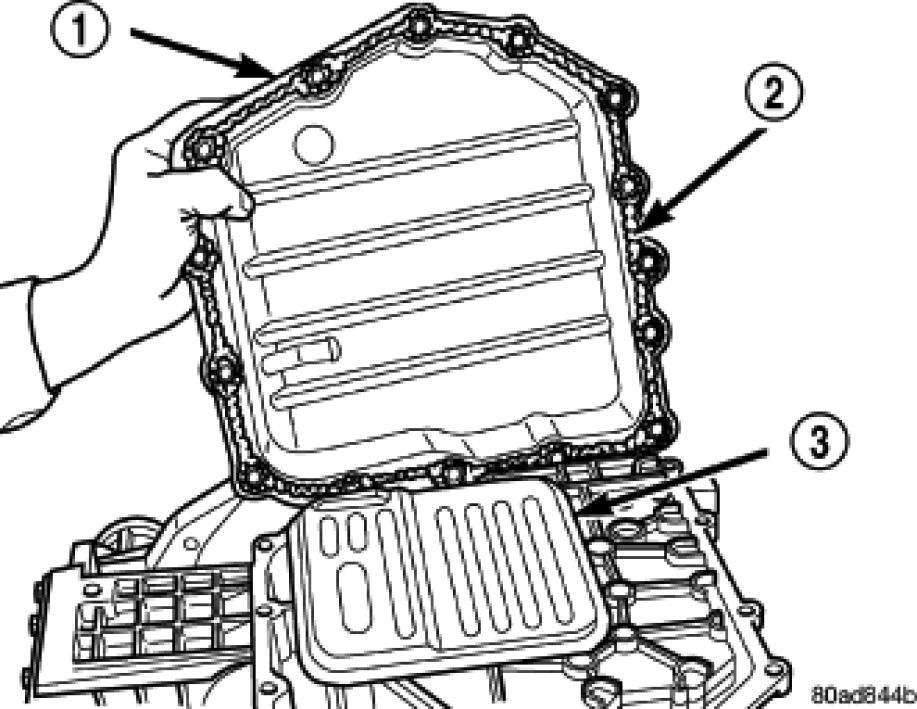

6. Remove oil pan.




7. Remove oil filter.




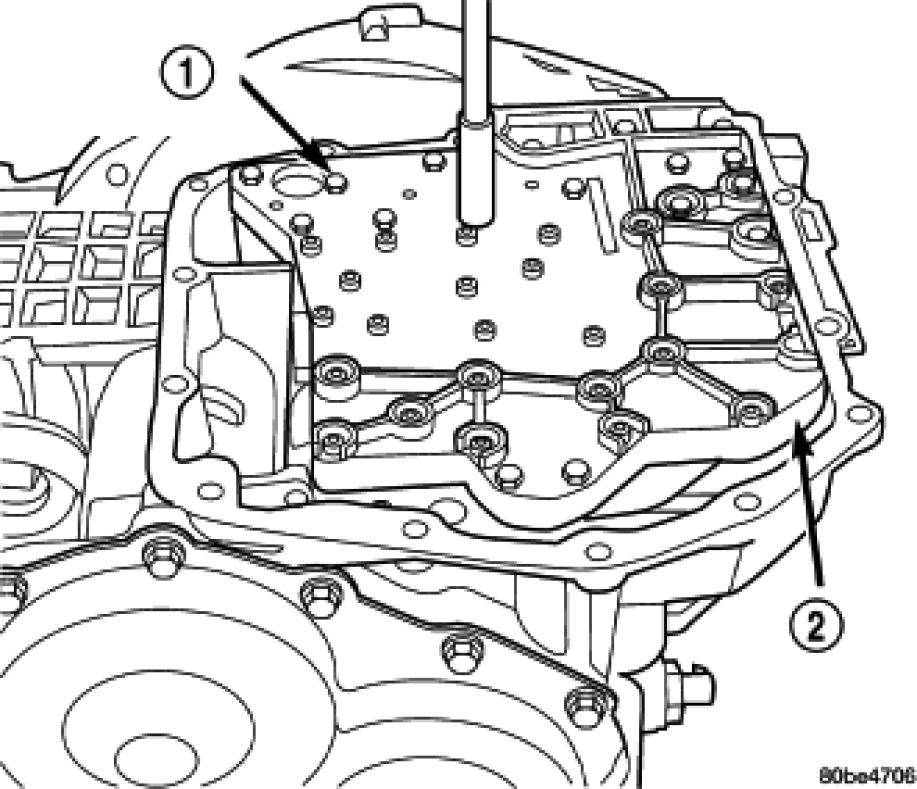

8. Remove the valve body-to-transaxle case bolts.




NOTE: To ease removal of the valve body, turn the manual valve lever fully clockwise to low or first gear.

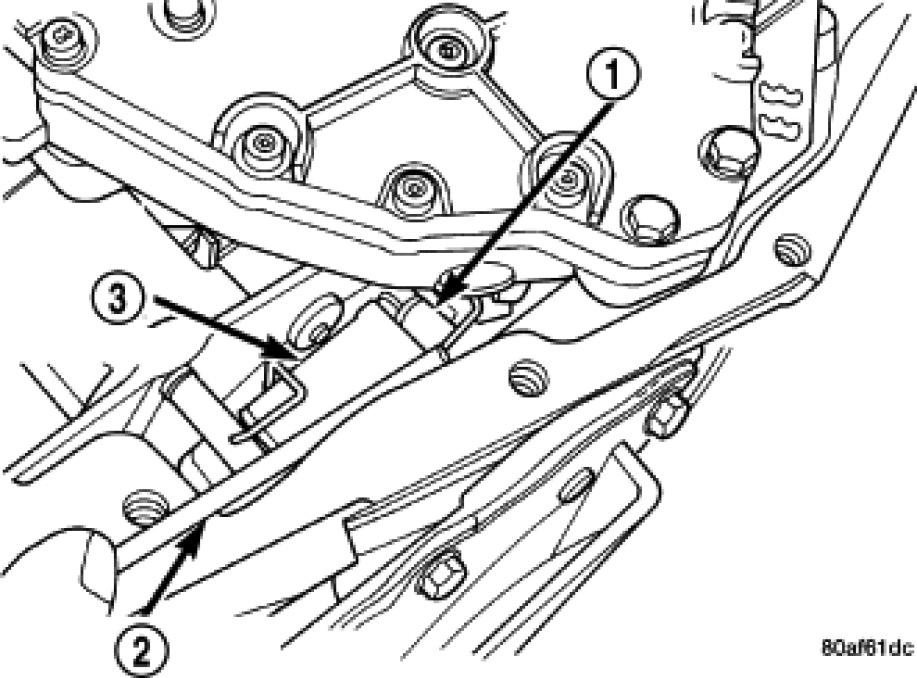

9. Remove park rod rollers from guide bracket (1).




10. Remove valve body from transaxle

CAUTION: The valve body manual shaft pilot may distort and bind the manual valve if the valve body is mishandled or dropped.
