Rear Center Seat Belt Retractor - Removal

REMOVAL





WARNING: Inspect the condition of the shoulder belt and lap belt. Replace any belt that is cut, frayed, torn, or damaged in any way. Also, replace the shoulder belt if the retractor is either damaged or inoperative.

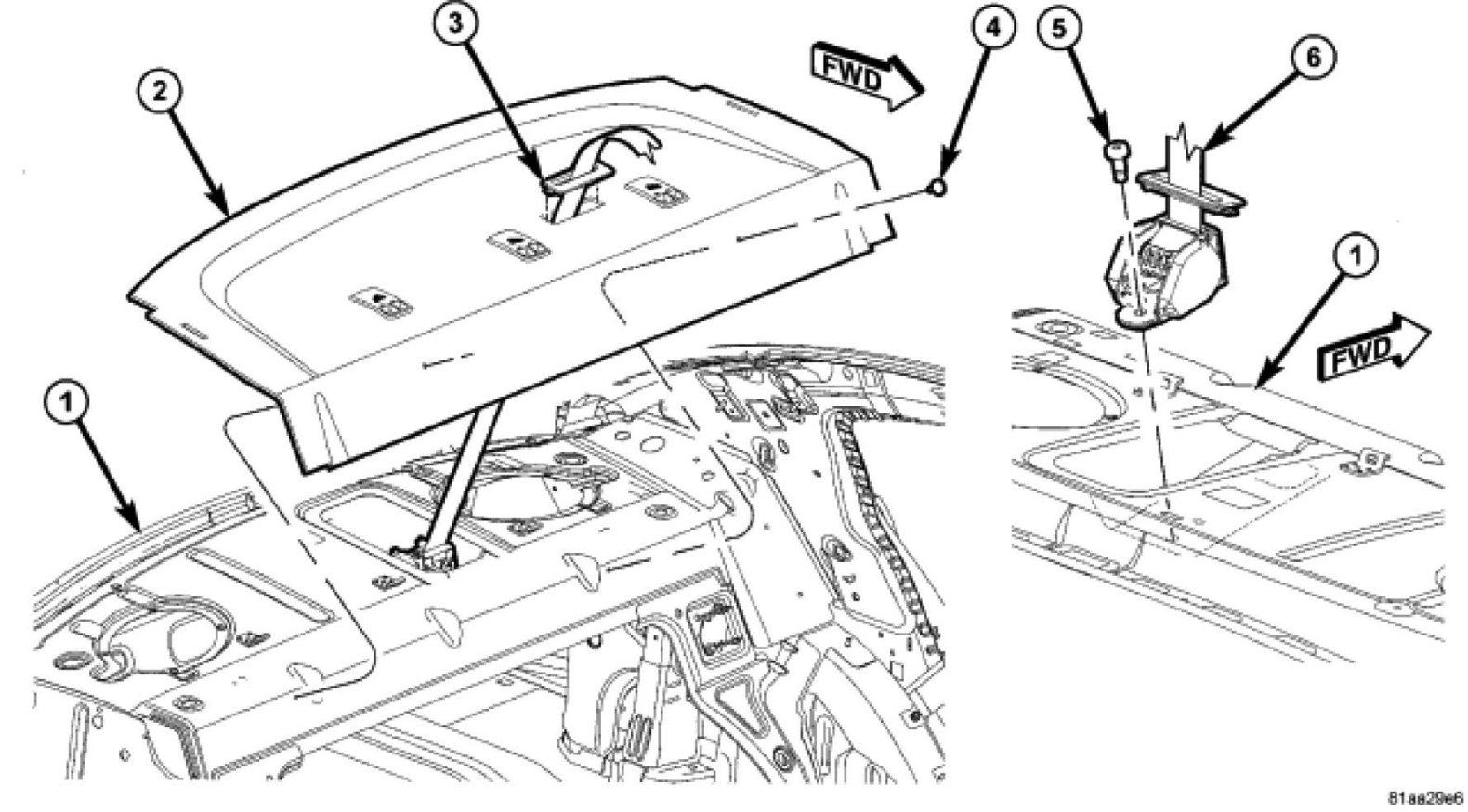

1. Remove the rear shelf trim panel (2) Removal.
2. Remove the bolt (5) attaching the center rear seat belt retractor to the rear shelf (1).




3. Remove nut (2) attaching center rear seat belt anchor (4) to floor pan.
4. Remove the center rear seat belt retractor assembly from the vehicle.
