Injector-Fuel 5

Component ID: 153

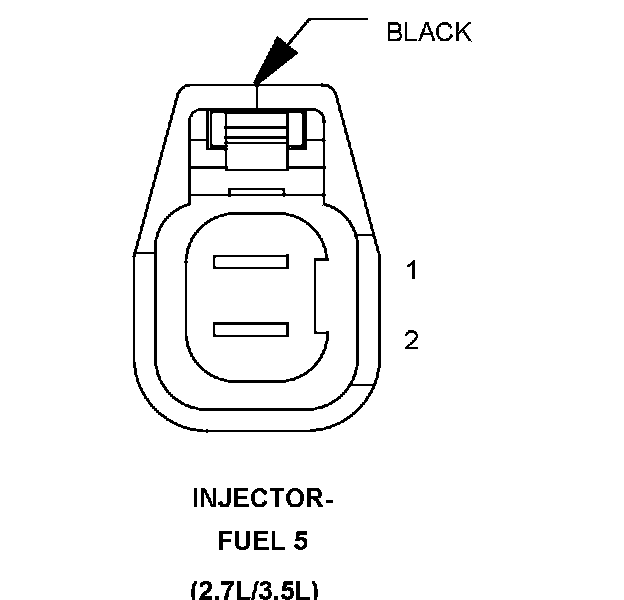

Component : INJECTOR-FUEL 5

Connector:
Name : INJECTOR-FUEL 5
Color : BLACK
# of pins : 2
Qualifier : (2.7L/3.5L)




Pin Circuit Description
1 K38 16BR/OR INJECTOR 5 CONTROL
2 F343 18BR/YL FUSED MAIN RELAY OUTPUT

Component Location - 22




Component Location - 26
