Cross Pipe - Removal

REMOVAL





WARNING: The normal operating temperature of the exhaust system is very high. Therefore, never attempt to service any part of the exhaust system until it is cooled. Special care should be taken when working near the catalytic converter. The temperature of the converter rises to a high level after a short period of engine operation time.

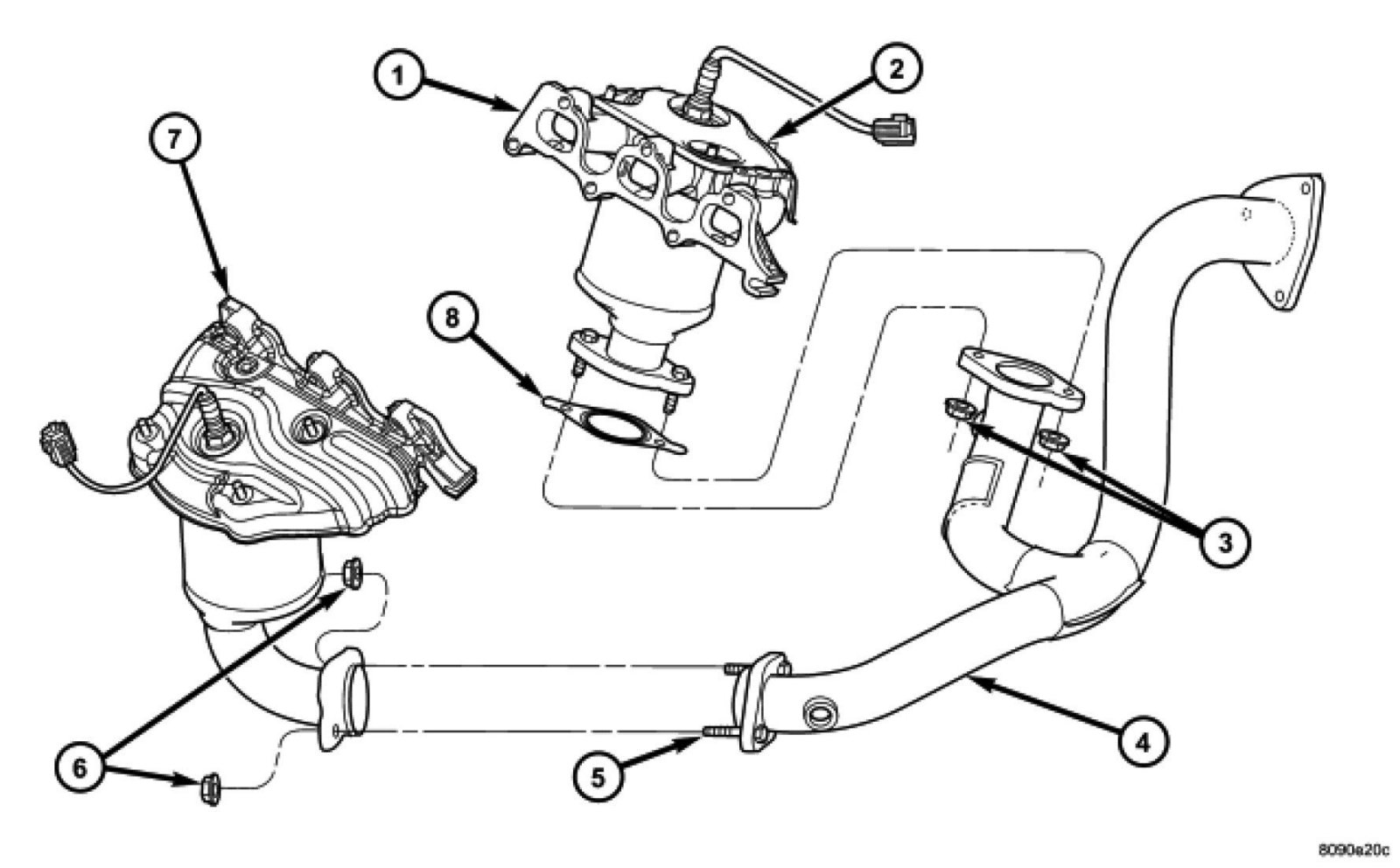

1. Raise vehicle on hoist.
2. Disconnect downstream oxygen sensor connectors.
3. Remove oil pan to transmission structural collar. Removal
4. Disconnect exhaust system pipe from cross-under pipe.
5. Remove fasteners attaching cross-under pipe to catalytic converters.
6. Remove cross-under pipe.
