Exhaust Manifold - Installation

INSTALLATION

FRONT EXHAUST MANIFOLD

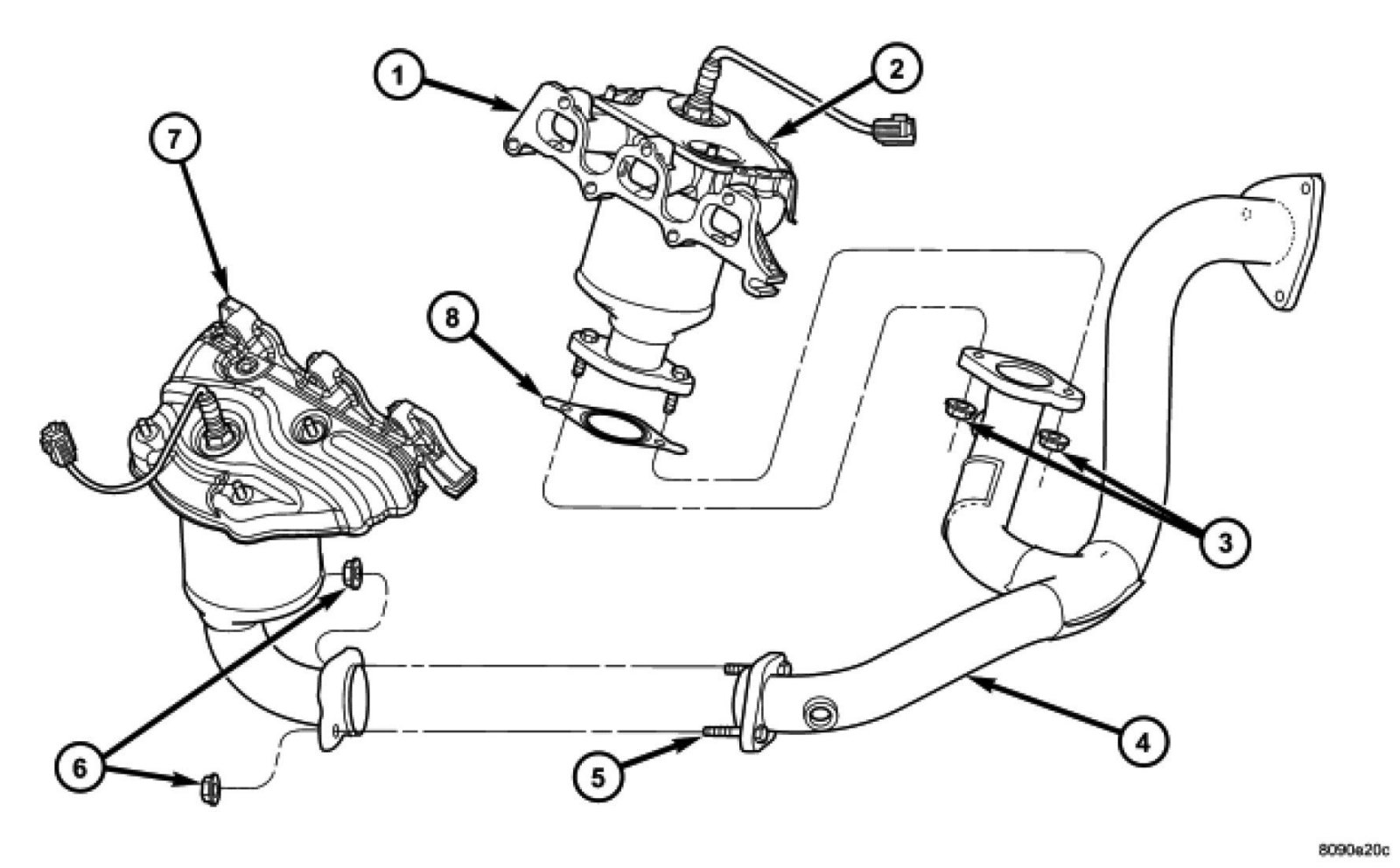

1. Install exhaust manifold (7) and gasket. Tighten bolts starting at the center working outward to 23 Nm (200 in. lbs.).

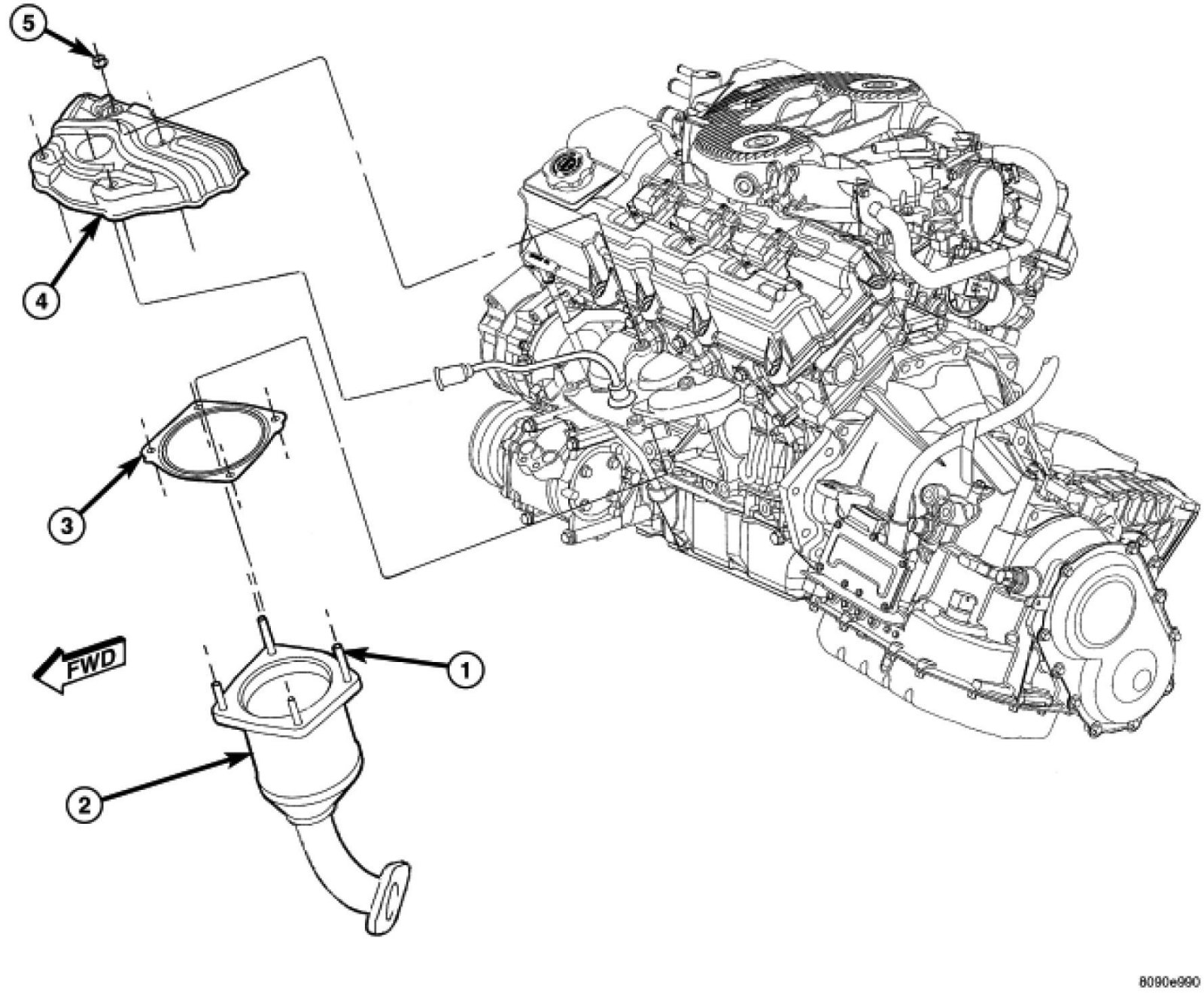

2. Install front catalytic converter (2) and manifold heat shield. Tighten fasteners to 28 Nm (250 in. lbs.).




3. Install exhaust cross-under pipe (4). Tighten fasteners to 28 Nm (250 in. lbs.).




4. Install oxygen sensor and connect electrical connector.

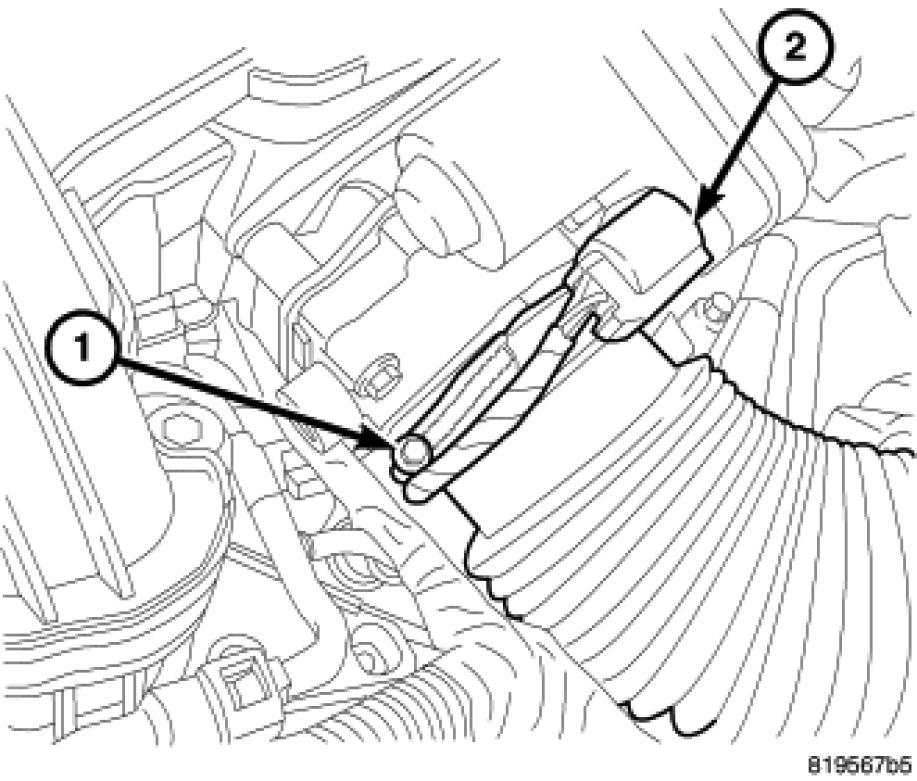

5. Install throttle body air inlet hose (1) and air cleaner housing assembly.
6. Connect negative battery cable.

REAR EXHAUST MANIFOLD





1. Install exhaust manifold (1) and gasket. Tighten bolts working from center outwards to 23 Nm (200 in. lbs.).




2. Install rear catalytic converter and manifold heat shield. Tighten fasteners to 28 Nm (250 in. lbs.).
3. Install oxygen sensor and connect electrical connector.




4. Install exhaust cross-under pipe (4). Tighten fasteners to 28 Nm (250 in. lbs.).




5. Install exhaust system. Tighten fasteners to 28 Nm (250 in. lbs.).
6. Install EGR tube using new gaskets. Tighten screws to 11 Nm (95 in. lbs.).
7. Install throttle body air inlet hose (1) and air cleaner housing assembly.
8. Connect negative battery cable.
