Home >> Chrysler >> 2008 >> Sebring Convertible V6-2.7L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Seals and Gaskets >> Front Crankshaft Seal >> Service and Repair >> Removal

Removal







REMOVAL





1. Remove crankshaft vibration damper. Vibration Damper - Removal

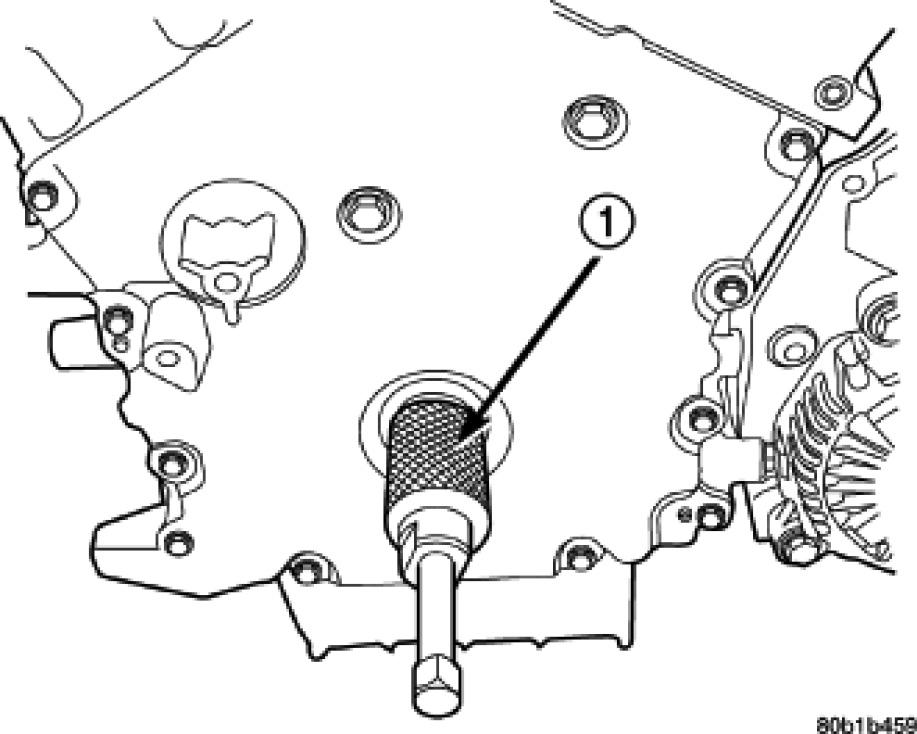

2. Install Special Tool 8194, Insert into crankshaft nose. Remove seal using Special Tool 6771, Remover (1).
