Rear Engine Mount

REMOVAL





1. Remove throttle body air inlet hose and air cleaner housing assembly.
2. Remove three vertical bolts attaching rear mount bracket to transaxle case.

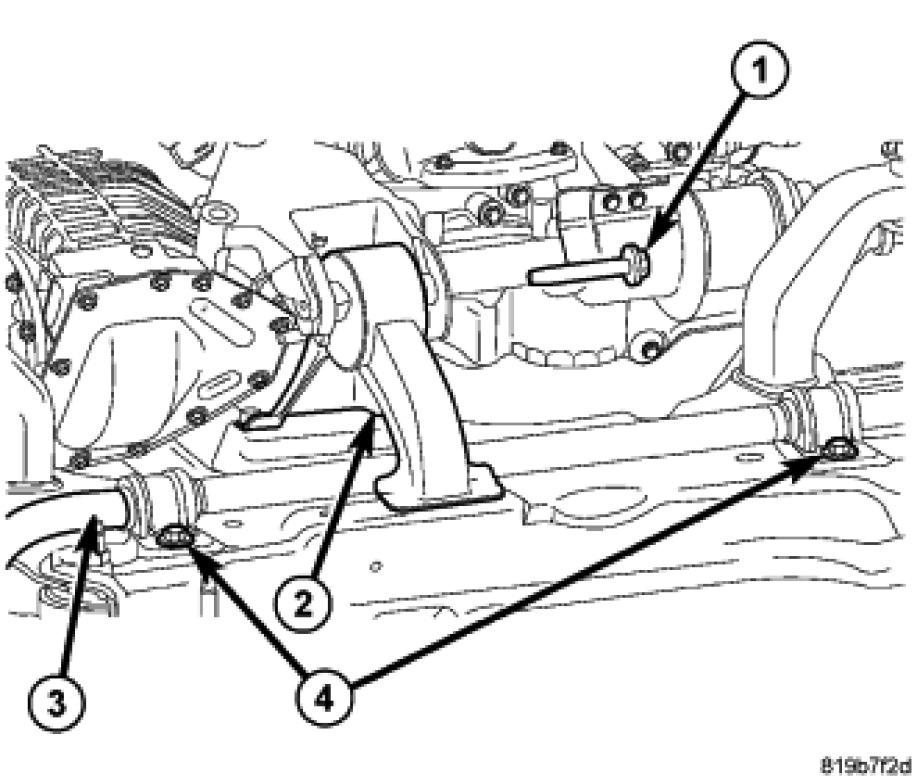

3. Remove rear mount bracket through bolt (1).
4. Loosen the front mount through bolt.
5. Remove horizontal bolt attaching rear mount bracket to transaxle case.
6. Remove mount bracket.(2).
7. Remove rear mount to suspension crossmember attaching bolts.
8. Remove rear mount.
