Front Engine Mount

INSTALLATION

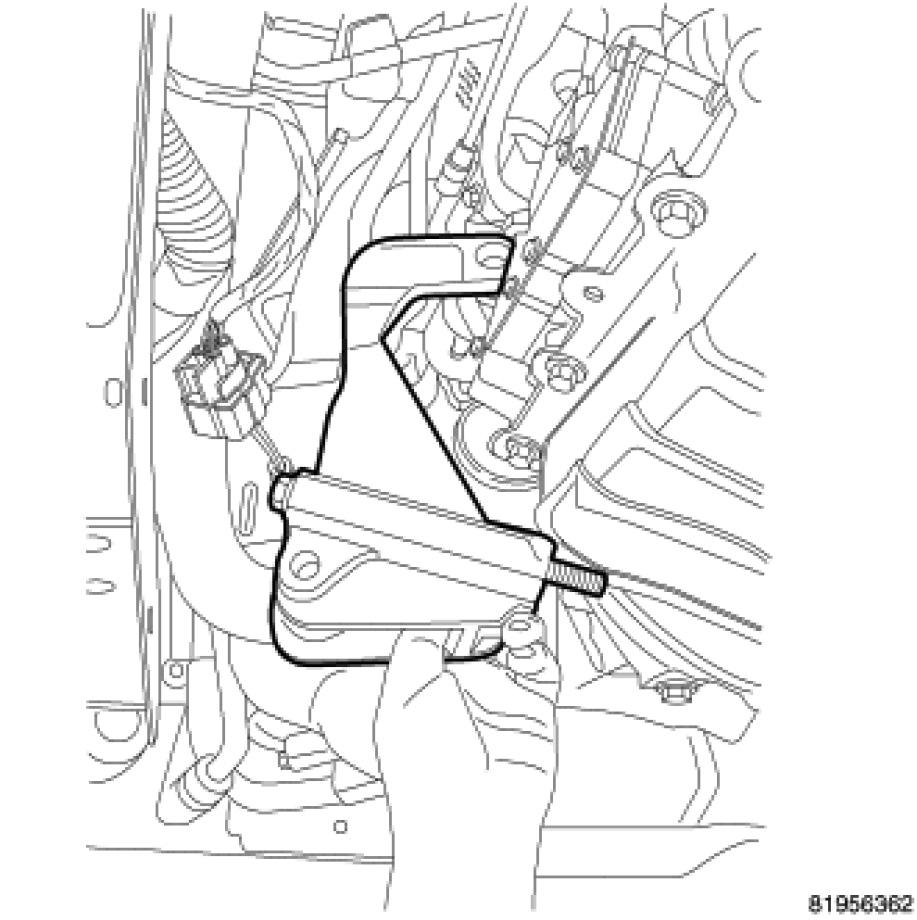

1. Install front anti-roll mount bracket and start bolts.




2. Install the engine anti-roll mount and bolts (1) and (2). Tighten to 50 Nm (37 ft.lbs.)

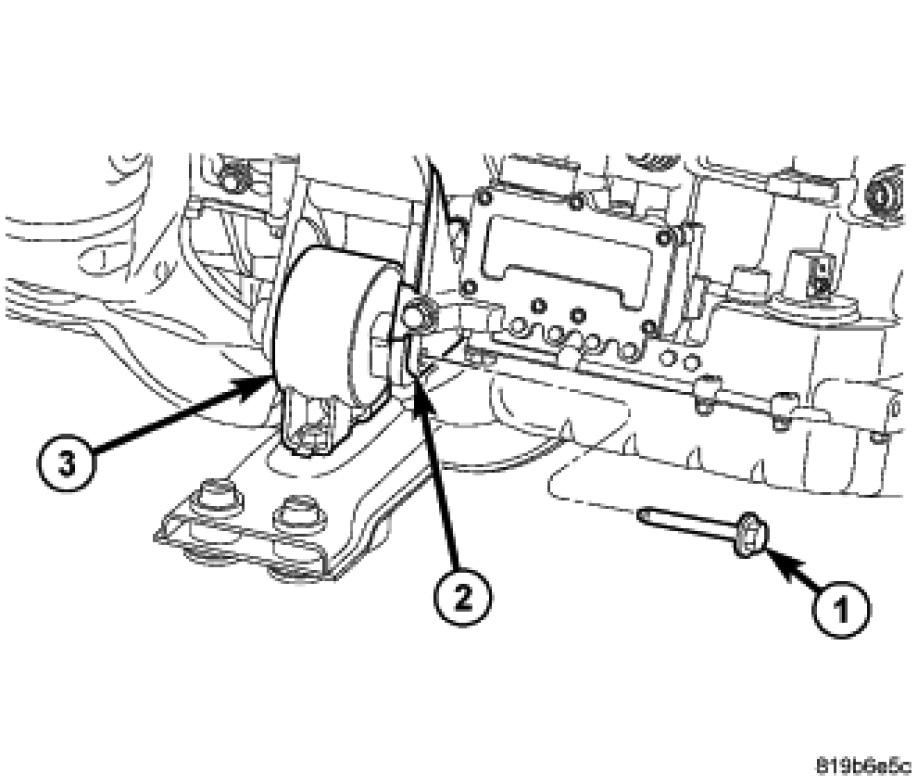

3. Install mount through bolt (1) and tighten to 47 Nm (35 ft. lbs.).

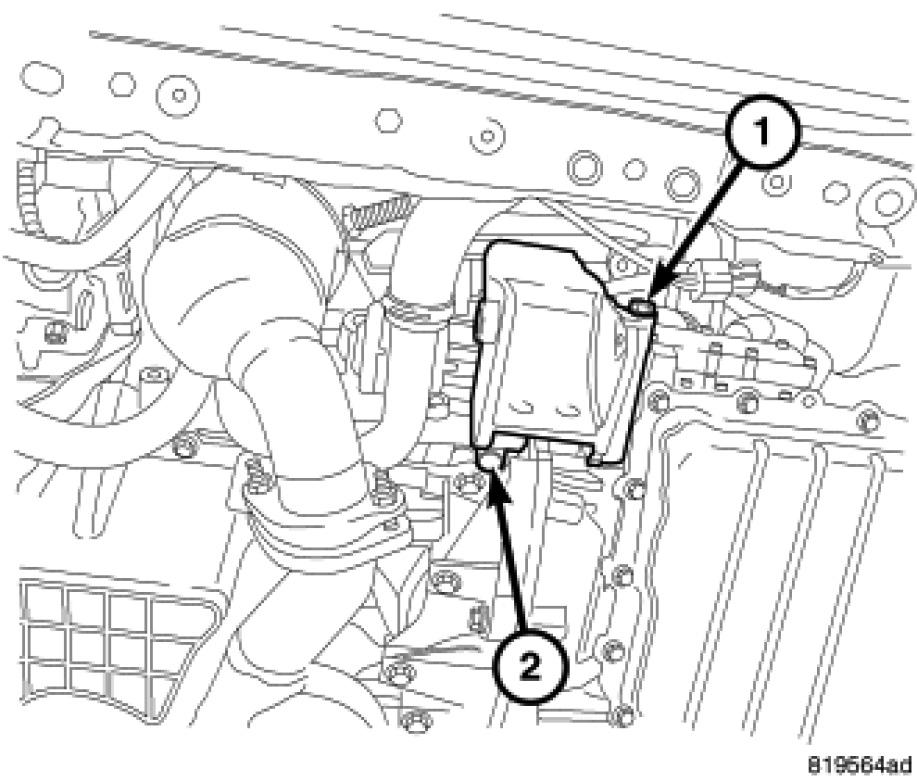

4. Install lower engine anti-roll mount bolt (2) and tighten bolts to 47 Nm (35 ft. lbs.).

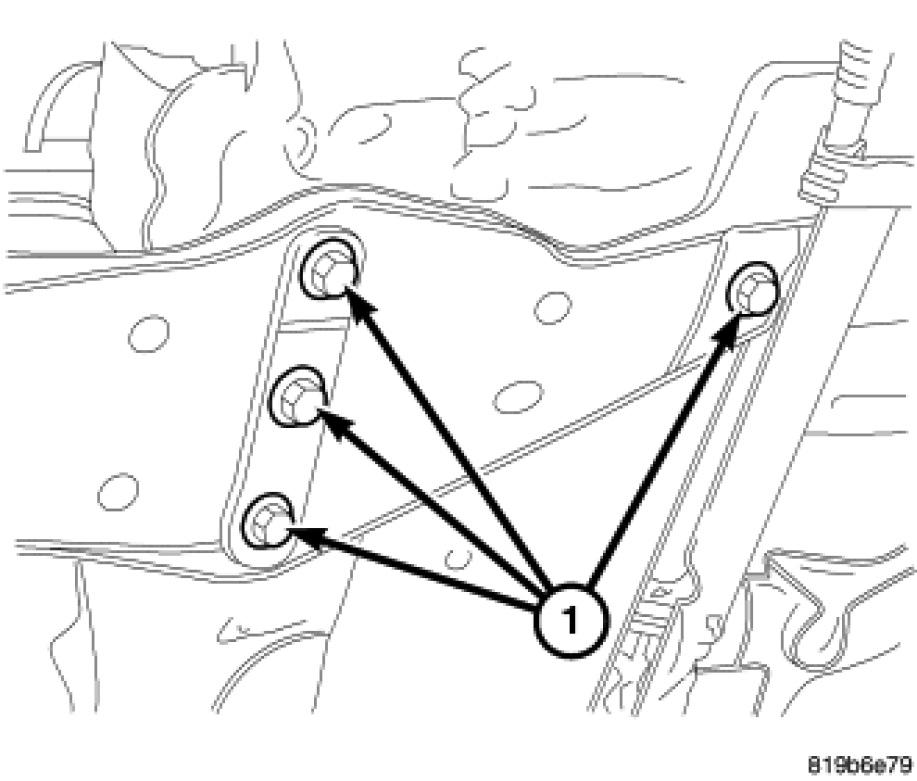

5. Install bolts (1) and tighten to 55 Nm (40.5 ft. lbs.).

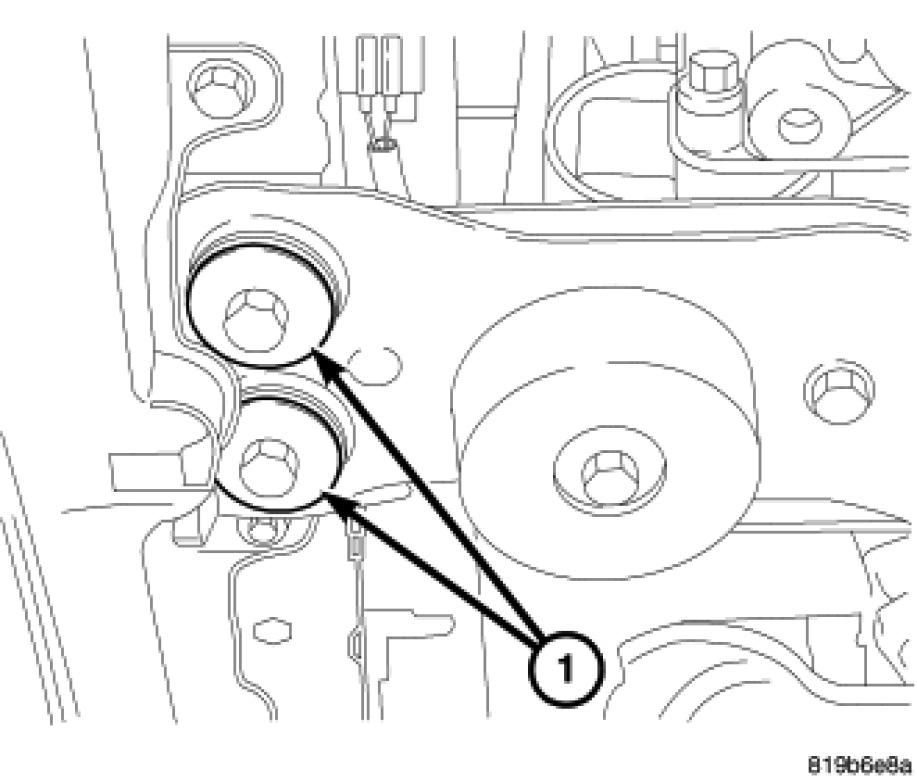

6. Install bolts (1) and tighten to 55 Nm (40.5 ft. lbs.).




7. Tighten bolts (1) to 50 Nm (37 ft. lbs.).
8. If equipped, install the belly pan.
9. Lower vehicle.
10. Connect the negative battery cable.
