Water Pump - Installation

2.7L ENGINE





1. Clean all sealing surfaces.

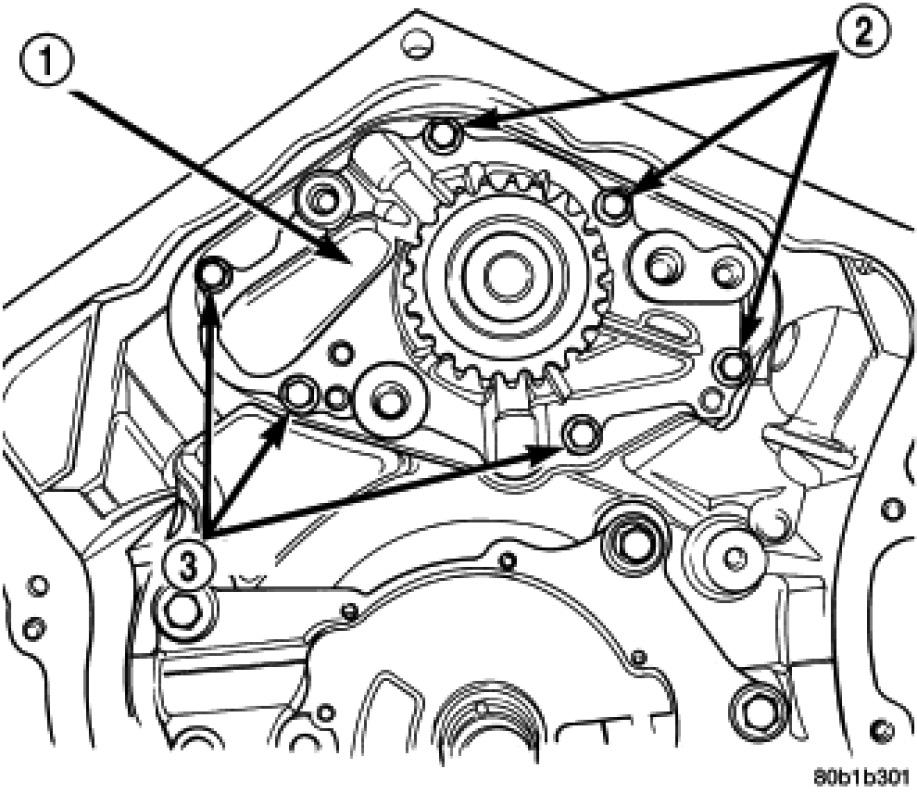

2. Install water pump (1) and gasket. Tighten mounting bolts to 12 Nm (105 in. lbs.).
3. Install timing chain guides and timing chain Timing Chain & Sprockets - Installation.
4. Install the accessory drive belts Accessory Drive Belt - Installation.
5. Install the radiator fan assembly Radiator Fan - Installation.
6. Fill cooling system Service and Repair.
