Description - 2.7L







DESCRIPTION - 2.7L

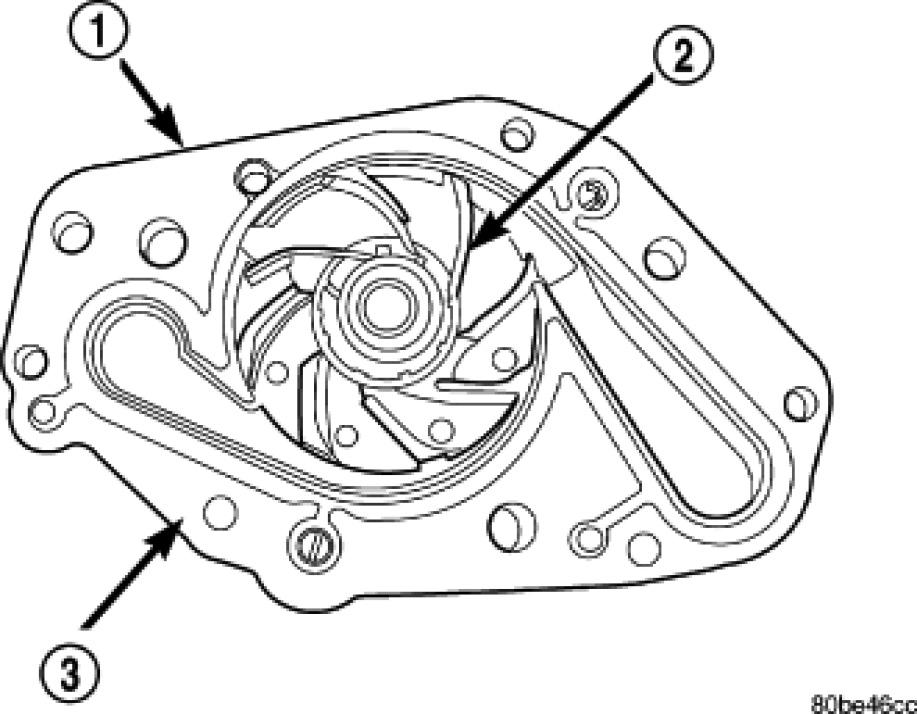

The 2.7L pump has a die cast aluminum housing and a plastic swept vane impeller. It bolts directly to the cylinder block, behind the timing chain cover. The water pump is driven by the back side of the engine's primary timing chain.
