Module-Door-Passenger

Component ID: 210
Component : MODULE-DOOR-PASSENGER

Connector:

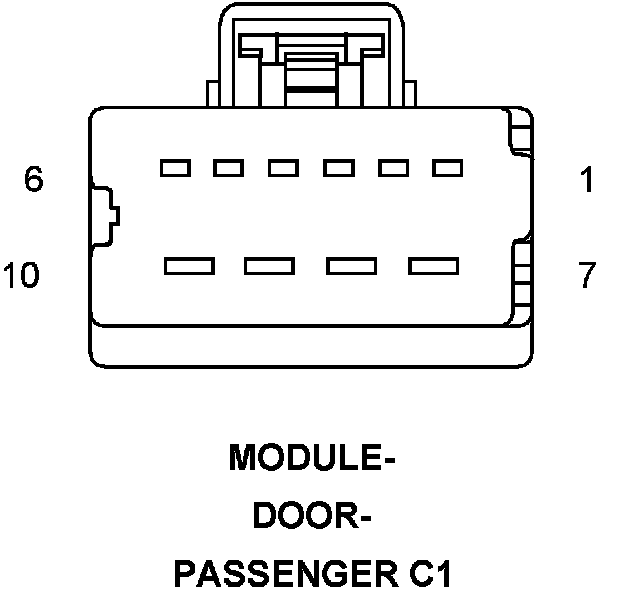

Name : MODULE-DOOR-PASSENGER C1
Color :
# of pins : 10




Pin Circuit Description
1 Q302 20OR/LG PASSENGER WINDOW HALL SENSOR A SIGNAL
2 Q990 20BK/LG PASSENGER WINDOW HALL SENSOR RETURN
3 Q304 20LG/OR PASSENGER WINDOW HALL SENSOR B SIGNAL
4 A937 14RD FUSED B(+)
5 - -
6 - -
7 A937 14RD FUSED B(+)
8 Z907 14BK GROUND
9 Q322 14LG/OR PASSENGER WINDOW EXPRESS DOWN DRIVER
10 Q312 14DB/OR PASSENGER WINDOW EXPRESS UP DRIVER



Connector:

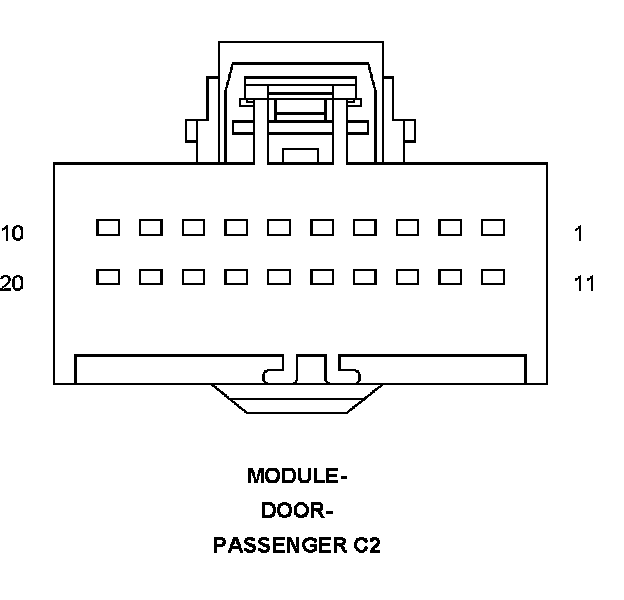

Name : MODULE-DOOR-PASSENGER C2
Color :
# of pins : 20




Pin Circuit Description
1 D54 20WT CAN B BUS (-)
2 D55 20WT/OR CAN B BUS (+)
3 - -
4 Q936 20OR/LG PASSENGER WINDOW EXPRESS SWITCH RETURN
5 G745 20VT/WT RIGHT DOOR SECONDARY AJAR SWITCH SENSE
5 G755 20VT/BR LEFT DOOR SECONDARY AJAR SWITCH SENSE
6 Q58 20OR/YL PASSENGER WINDOW DROP SWITCH SENSE
7 - -
8 - -
9 - -
10 - -
11 Q306 20OR/DB PASSENGER WINDOW HALL SENSOR SUPPLY
12 - -
13 - -
14 Q336 20OR/GY PASSENGER WINDOW EXPRESS SWITCH MUX
15 - -
16 G74 20VT/WT RIGHT FRONT DOOR AJAR SWITCH SENSE
16 G75 20VT LEFT FRONT DOOR AJAR SWITCH SENSE
17 - -
18 - -
19 - -
20 - -
