Convertible Top Control Module
Component ID: 220
Component : MODULE- POWER TOP
Connector:

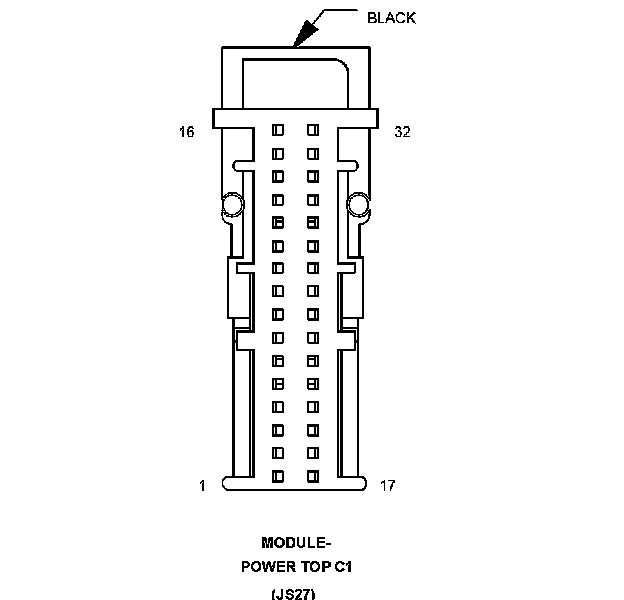

Name : MODULE-POWER TOP C1
Color : BLACK
# of pins : 32
Qualifier : (JS27)
Pin Circuit Description
1 Q972 20OR/GY PANEL LIMIT SWITCH UNLATCH SIGNAL CIRCUIT
2 Q976 22OR LUGGAGE PROTECTION SWITCH SIGNAL
3 G98 20VT CONVERTIBLE TOP CHIME SIGNAL
4 Q992 20BK/GY REAR WINDOW MOTOR RETURN
5 - -
6 - -
7 Q307 20OR/LB LEFT REAR WINDOW HALL SENSOR A SIGNAL
8 - -
9 Q309 20LB/OR LEFT REAR WINDOW HALL SENSOR B SIGNAL
10 Z908 18BK GROUND
11 Q310 20GY/OR RIGHT REAR WINDOW HALL SENSOR B SIGNAL
12 Q308 20OR/GY RIGHT REAR WINDOW HALL SENSOR A SIGNAL
13 - -
14 Q987 20LG/DG POWER TOP MOTOR SENSE
15 Q999 20OR CONVERTIBLE TOP SWITCH RETURN
16 D54 20WT CAN B BUS (-)
17 Q970 20OR/VT ROOF LIMIT SWITCH SENSE SIGNAL
18 Q978 20OR/DG ROOF HEADER LIMIT SWITCH UNLATCH SIGNAL CIRCUIT
19 Q977 20OR/TN ROOF HEADER LIMIT SWITCH LATCH SIGNAL CIRCUIT
20 - -
21 Q974 22OR/PK DECKLID LIMIT SWITCH LATCH SIGNAL
22 Q973 20OR/DB PANEL LIMIT SWITCH LATCH SIGNAL CIRCUIT
23 Q975 20OR/YL DECKLID POSITION SIGNAL
24 Q988 20LG/OR CONVERTIBLE TOP RETRACTED SIGNAL
25 Q316 20OR/TN RIGHT REAR WINDOW HALL SENSOR SUPPLY
26 Q315 20OR LEFT REAR WINDOW HALL SENSOR SUPPLY
27 Q989 20OR/WT CONVERTIBLE TOP RETRACTED RETURN
28 Q969 20OR/LG DECKLID POSITION RETURN
29 Q981 20LG/RD TONNEAU LIMIT SWITCH RETRACTED SIGNAL
30 Q982 20LG/PK TONNEAU LIMIT SWITCH EXTENDED SIGNAL
31 Q31 20OR/DB CONVERTIBLE TOP SWITCH MUX
32 D55 20WT/OR CAN B BUS (+)
Component Location - 76
Connector:

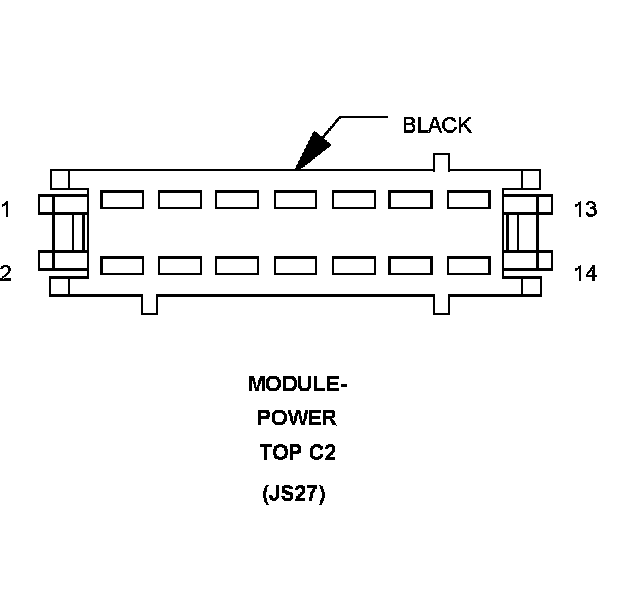

Name : MODULE-POWER TOP C2
Color : BLACK
# of pins : 14
Qualifier : (JS27)
Pin Circuit Description
1 A927 16RD/WT FUSED B(+)
2 Q212 14OR/VT RIGHT REAR WINDOW DRIVER (DOWN)
3 Q984 14LG/VT TONNEAU COVER MOTOR EXTEND SIGNAL
4 Q112 14OR/BR RIGHT REAR WINDOW DRIVER (UP)
5 Q983 14LG/BR TONNEAU COVER MOTOR RETRACT SIGNAL
6 Z908 16BK GROUND
7 - -
8 Q980 14LG/BK ROOF MOTOR HEADER UNLATCH SIGNAL
9 - -
10 A926 16RD FUSED B(+)
11 Q979 14OR/LG ROOF MOTOR HEADER LATCH SIGNAL
12 Q211 14TN/LB LEFT REAR WINDOW DRIVER (DOWN)
13 Z916 16BK GROUND
14 Q111 14TN/YL LEFT REAR WINDOW DRIVER (UP)
Component Location - 76
Connector:

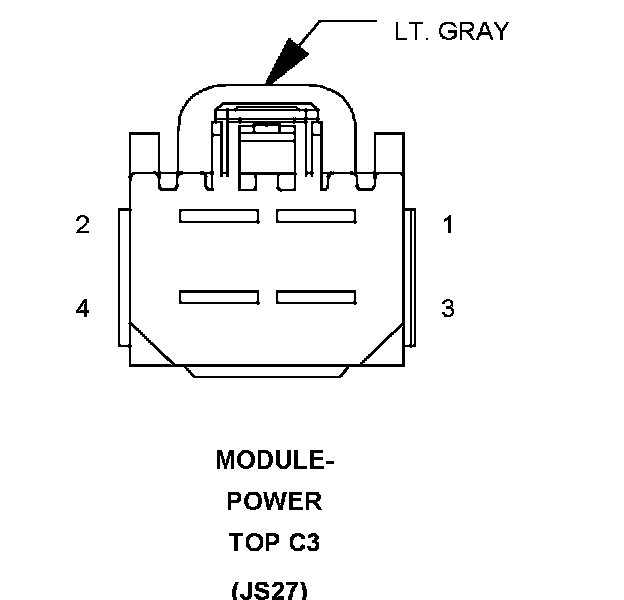

Name : MODULE-POWER TOP C3
Color : LT. GRAY
# of pins : 4
Qualifier : (JS27)
Pin Circuit Description
1 Q985 12LG/WT POWER TOP EXTENDED DRIVER
2 A925 12RD FUSED B(+)
3 Q986 12LG/YL POWER TOP RETRACTED DRIVER
4 Z916 12BK GROUND
Component Location - 76
