C115

Component ID: 40
Component : C115

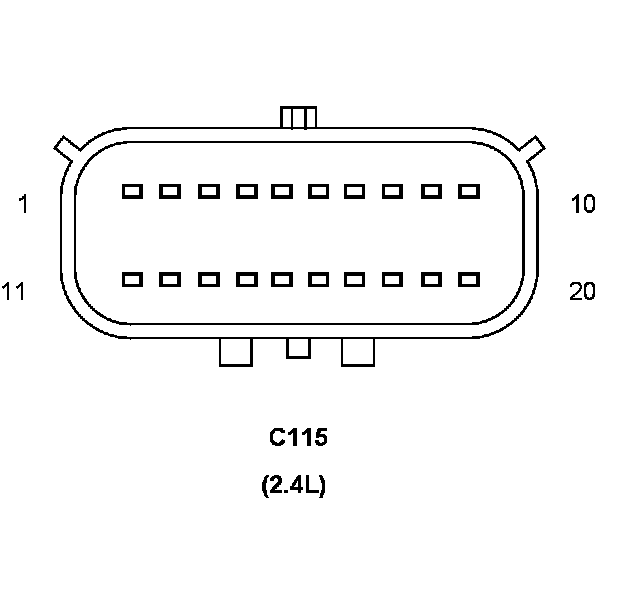

Connector:
Name : C115
Color :
# of pins : 20
Qualifier : (2.4L)
Gender : FEMALE




Pin Circuit Description
1 T854 20DG 5 VOLT SUPPLY
2 T1 20DG/LB TRS T1 SIGNAL
3 T3 20DG/DB TRS T3 SIGNAL
4 T9 20DG/TN OD PRESSURE SIGNAL
5 T13 20DG/VT SENSOR GROUND
6 T14 20DG/BR OUTPUT SPEED SIGNAL
7 T19 18YL/RD 2-4 CONTROL
8 T20 20DG/WT L/R CONTROL
9 T38 20YL/BR LP VFS SIGNAL
10 T41 20YL/DB TRS T41 SIGNAL
11 T42 20DG/YL TRS T42 SIGNAL
12 T47 20YL/DG 2-4 PRESSURE SIGNAL
13 T50 20YL/TN L/R PRESSURE SIGNAL
14 T52 20DG/OR INPUT SPEED SIGNAL
15 T118 18DG LP VFS CONTROL
16 T54 20DG/GY TRANSMISSION TEMPERATURE SIGNAL
17 T59 18YL/LB UD CONTROL
18 T60 18YL/WT OD CONTROL
19 T853 20YL/GY SENSOR GROUND
20 T16 16YL/OR TRANSMISSION CONTROL OUTPUT

Component Location - 29

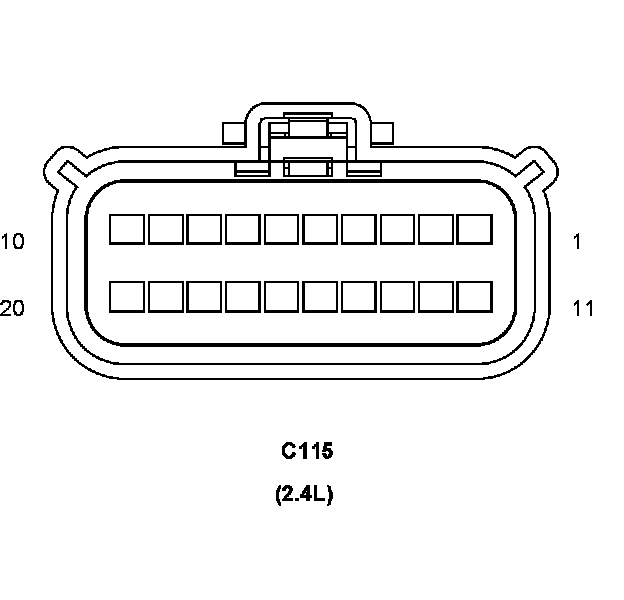

Connector:
Name : C115
Color :
# of pins : 20
Qualifier : (2.4L)
Gender : MALE




Pin Circuit Description
1 T854 20DG 5 VOLT SUPPLY
2 T1 20DG/LB TRS T1 SIGNAL
3 T3 20DG/DB TRS T3 SIGNAL
4 T9 20DG/TN OD PRESSURE SIGNAL
5 T13 20DG/VT SENSOR GROUND
6 T14 20DG/BR OUTPUT SPEED SIGNAL
7 T19 18YL/DB 2-4 CONTROL
8 T20 18DG/WT L/R CONTROL
9 T38 18YL/BR LP VFS SIGNAL
10 T41 20YL/DB TRS T41 SIGNAL
11 T42 20DG/YL TRS T42 SIGNAL
12 T47 20YL/DG 2-4 PRESSURE SIGNAL
13 T50 20YL/TN L/R PRESSURE SIGNAL
14 T52 20DG/OR INPUT SPEED SIGNAL
15 T118 18DG LP VFS CONTROL
16 T54 20DG/GY TRANSMISSION TEMPERATURE SIGNAL
17 T59 18YL/LB UD CONTROL
18 T60 18YL/WT OD CONTROL
19 T853 20YL/GY SENSOR GROUND
20 T16 16YL/OR TRANSMISSION CONTROL OUTPUT

Component Location - 29
