C108

Component ID: 34

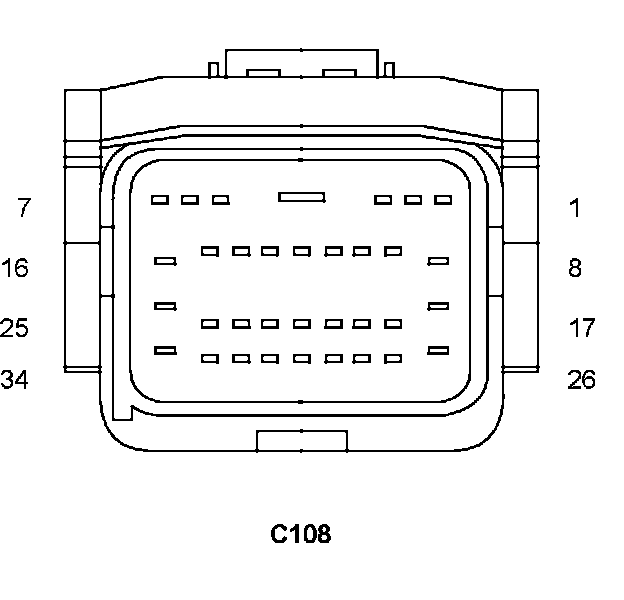

Component : C108

Connector:
Name : C108
Color :
# of pins : 34
Gender : FEMALE

Pin Circuit Description
1 L7 20WT/YL HEADLAMP SWITCH OUTPUT
2 L60 20WT/TN RIGHT TURN SIGNAL CONTROL
3 L61 20WT/LG LEFT TURN SIGNAL CONTROL
4 - -
5 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL
6 R81 20LB/WT LEFT FRONT IMPACT SENSOR GROUND
7 G70 20VT/LB HOOD AJAR SWITCH SENSE
8 - -
9 L89 18WT/YL FRONT FOG LAMP CONTROL OUTPUT
10 L90 18WT/OR FRONT FOG LAMP CONTROL OUTPUT
11 W10 20BR FRONT WASHER PUMP MOTOR CONTROL
12 R80 20VT/LB RIGHT FRONT IMPACT SENSOR SIGNAL
13 R82 20WT/LB RIGHT FRONT IMPACT SENSOR GROUND
14 X21 18GY/YL HORN CONTROL OUTPUT
15 X22 18GY/LB HORN CONTROL OUTPUT
16 - -
17 - -
18 L43 20WT/DB LEFT LOW BEAM OUTPUT
19 L44 20WT/TN RIGHT LOW BEAM OUTPUT
20 G31 20VT/LG AAT SIGNAL
21 G931 20VT/BR AAT RETURN
22 W24 20BR/OR HEADLAMP WASHER RELAY CONTROL
23 L70 20WT/GY HEADLAMP SWITCH OUTPUT
24 F936 20PK/YL FUSED IGNITION SWITCH OUTPUT (RUN)
25 A937 14RD FUSED B(+)
26 - -
27 L33 20WT/LG LEFT HIGH BEAM OUTPUT
28 L34 20WT/LB RIGHT HIGH BEAM OUTPUT
29 - -
30 - -
31 W20 20BR/YL REAR WASHER PUMP MOTOR CONTROL
32 L131 20WT/LG LEFT HEADLAMP LEVEL SENSOR SIGNAL
33 L132 20LG/WT RIGHT HEADLAMP LEVEL SENSOR SIGNAL
34 - -

Component Location - 5

Component Location - 13

Connector:
Name : C108
Color :
# of pins : 34
Gender : MALE

Component Location - 13
