C105

Component ID: 32
Component : C105

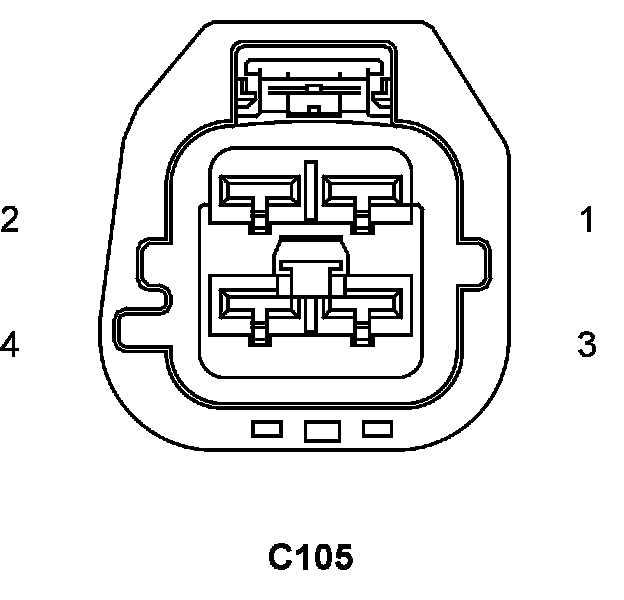

Connector:
Name : C105
Color :
# of pins : 4
Gender : FEMALE

Pin Circuit Description
1 N23 10DB LOW/HIGH RAD FAN RELAY OUTPUT
2 N24 10DG RAD FAN RELAY OUTPUT
3 Z901 16BK GROUND
4 N210 10DB/DG SERIES/PARALLEL RAD FAN RELAY FEED

Component Location - 5

Component Location - 13

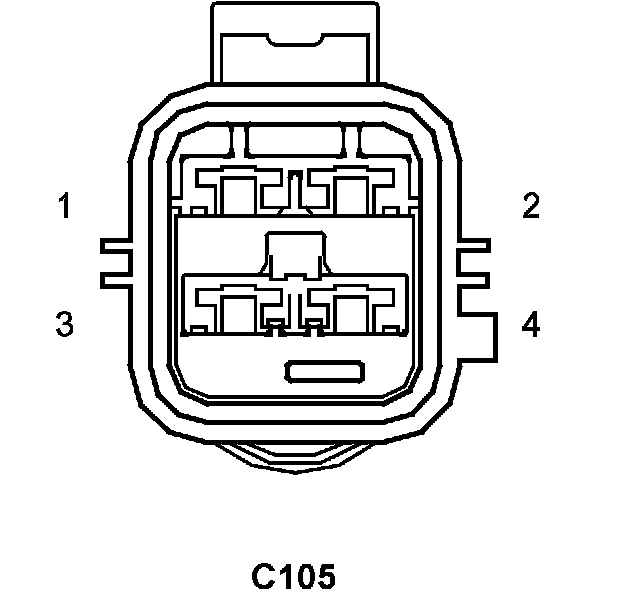

Connector:
Name : C105
Color :
# of pins : 4
Gender : MALE

Component Location - 13
