Blower Motor

Component ID: 227
Component : MOTOR-BLOWER

Connector:

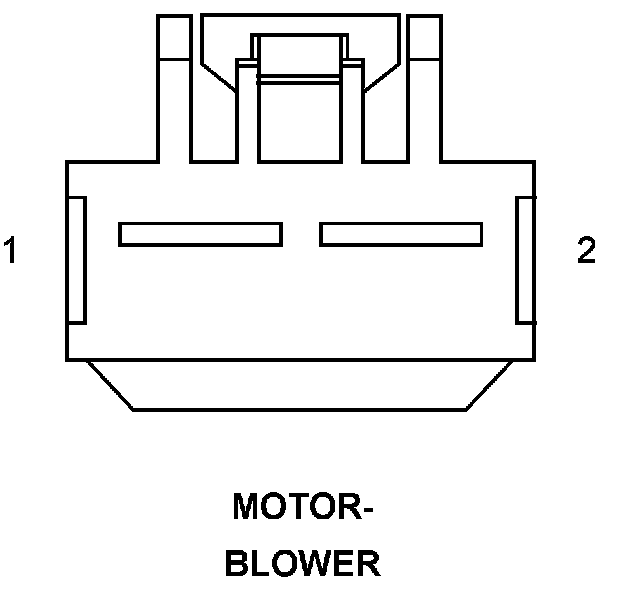

Name : MOTOR-BLOWER
Color :
# of pins : 2




Pin Circuit Description
1 Z134 12BK/LG GROUND
Pin Circuit Description
1 C70 12DB/YL BLOWER MOTOR HIGH DRIVER
2 C7 12DB BLOWER MOTOR CONTROL

Component Location - 38




Component Location - 40




Component Location - 43
