Antenna-Radio

Component ID: 14
Component : ANTENNA-RADIO

Connector:

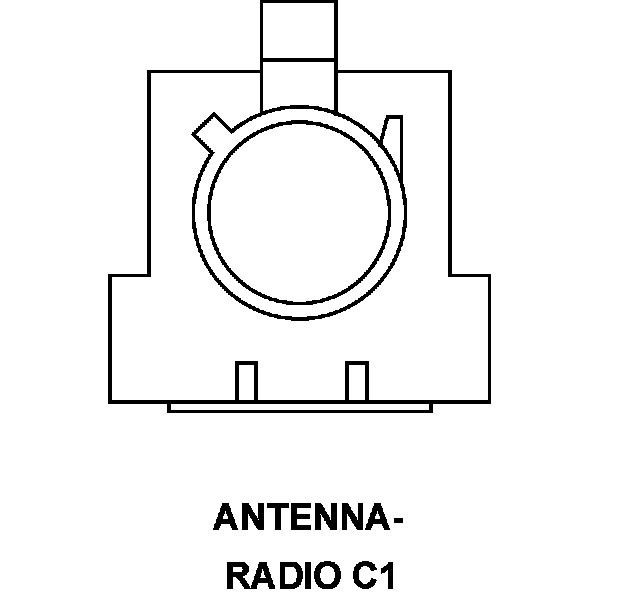

Name : ANTENNA-RADIO C1
Color :
# of pins : 2




Pin Circuit Description
1 D5 6WT/OR ANTENNA SIGNAL
2 D931 WT/YL ANTENNA SHIELD

Component Location - 84




Component Location - 92






Connector:

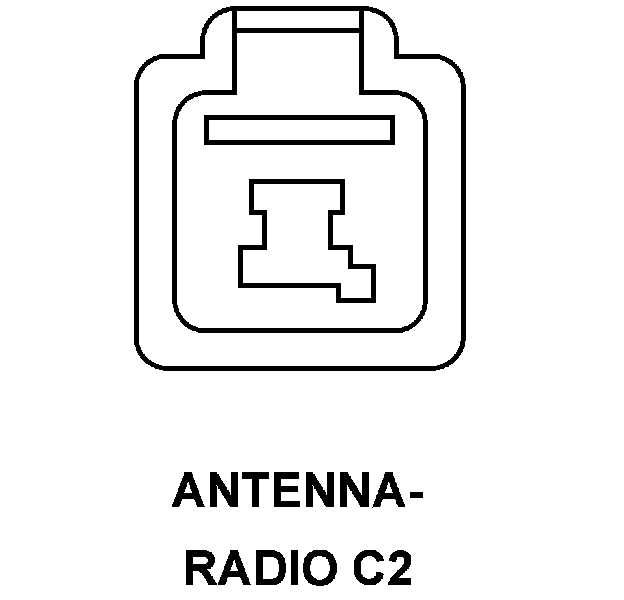

Name : ANTENNA-RADIO C2
Color :
# of pins : 1




Pin Circuit Description
1 X62 18GY/OR AMPLIFIED ANTENNA FEED

Component Location - 84




Component Location - 92
