Actuator-Mode Door

Component ID: 2
Component : ACTUATOR-MODE DOOR

Connector:

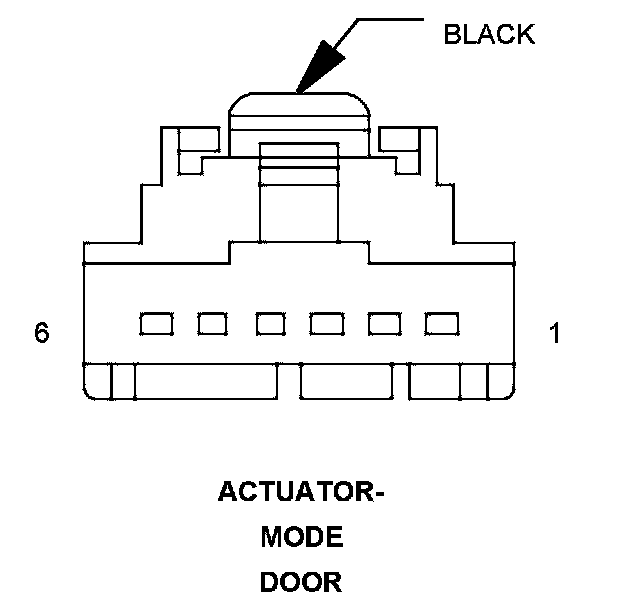

Name : ACTUATOR-MODE DOOR
Color : BLACK
# of pins : 6




Pin Circuit Description
1 C35 22LB/OR MODE DOOR DRIVER (A)
2 - -
3 - -
4 - -
5 - -
6 C34 22DB/LB COMMON DOOR DRIVER

Component Location - 38




Component Location - 40




Component Location - 41




Component Location - 42
