Removal

REMOVAL

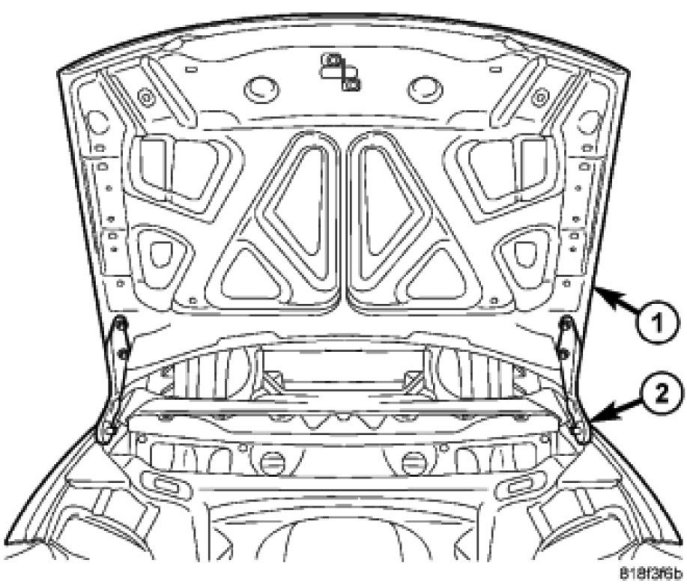

1. Support hood on the side that requires hinge replacement.
2. Mark hinge attachment locations with a grease pencil or other suitable device to aid installation.
3. Remove cowl coverRemoval.
4. Remove bolts (3) attaching hood to hinge (4).




5. Remove bolt (2) attaching hood hinge to load beam inner and remove hinge from vehicle.
