Removal

REMOVAL

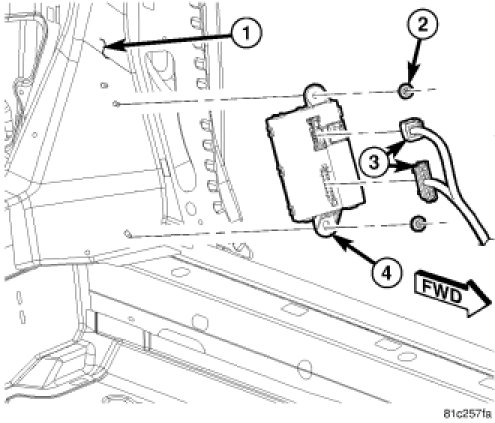

1. Disconnect and isolate the battery negative cable.
2. Remove the left lower quarter trim panel, Lower Quarter Trim - Removal.
3. Disconnect the Power Top Control Module (PTCM) electrical connectors (3).
4. Remove the two PTCM retaining nuts (2).
5. Remove the PTCM (4) from the vehicle.
