Driver Window Not Calibrated/Lost Calibration

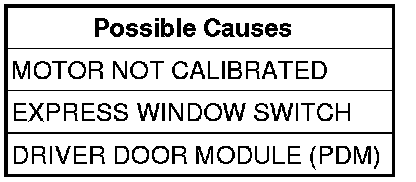

*DRIVER WINDOW NOT CALIBRATED/LOST CALIBRATION

For a complete wiring diagram Consult Diagrams/Electrical.





NOTE: This condition can happen anytime the battery or the door module connector is disconnected.

1. WINDOW MOTOR NOT CALIBRATED
Move the window part way down.
Run the window to the full up position and continue to hold the switch for an additional 2 seconds.
Run the window to the full down position and continue to hold the switch for an additional 2 seconds.
Press and release the switch to the express up position.
Did the window move to the full up position?

No

- Go to 2

Yes

- Test complete.

2. EXPRESS WINDOW SWITCH
Turn the ignition off.
Move the Driver Express Switch from the idle position to the up position and then to the express up position.
Is there two definite detent positions felt?

Yes

- Replace the Driver Door Module.
- Perform BODY VERIFICATION TEST - VER 1.Body Verification Test.

No

- Replace the Driver Express Window Switch assembly.
- Perform BODY VERIFICATION TEST - VER 1.Body Verification Test.
