Power Steering Pump Pulley - Removal

REMOVAL

1. Remove power steering pump from engine. Power Steering Pump - Removal

CAUTION: Do not hammer on power steering pump pulley or shaft to remove power steering pump pulley. Damage to pulley and power steering pump will occur.

CAUTION: It is very important to use Puller, Special Tool 9962, to remove pulley from power steering pump shaft. Use of other pullers can damage or break pulley and pump shaft.

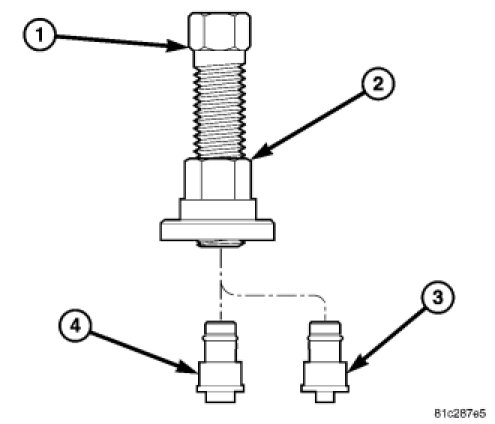

2. Coat Screw-Drive (1) with lubricant and thread into Puller Body (2).

NOTE: Two Buttons come with Puller kit (9962-3 and 9962-4). Be sure to use Button that best fits end of pump shaft to avoid damage to Button or pump shaft.

3. Insert Button (4), Special Tool 9962-4, into end of Screw-Drive. Be sure not to misplace ball bearing that resides behind Button.

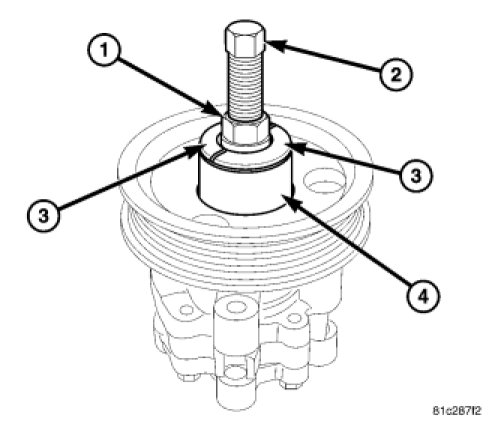

4. Assemble Puller, Special Tool 9962, over end of pump shaft and pulley hub.
a. Place Button on end of Screw-Drive against pump shaft.
b. Assemble Collets (3), Special Tool 9962-2, surrounding Puller Body (1) and pulley hub flange, then slide the Collet Sleeve over the Collets.
c. Hand tighten Screw-Drive (2) taking up any slack in Puller.
5. Hold Puller Body stationary while turning Screw-Drive until pulley is removed from power steering pump shaft.

NOTE: Inspect pulley. Replace if pulley is bent, cracked, or loose.
