Power Steering Pump - Removal

2.0L/2.4L ENGINE

NOTE: Before proceeding, Service Precautions.

1. Siphon as much fluid as possible from the power steering fluid reservoir.
2. Remove the engine appearance cover.




3. Remove the pressure hose routing bracket bolt (2) at the upper mount (8).
4. Remove the pressure hose (3) at the pump pressure port (5).

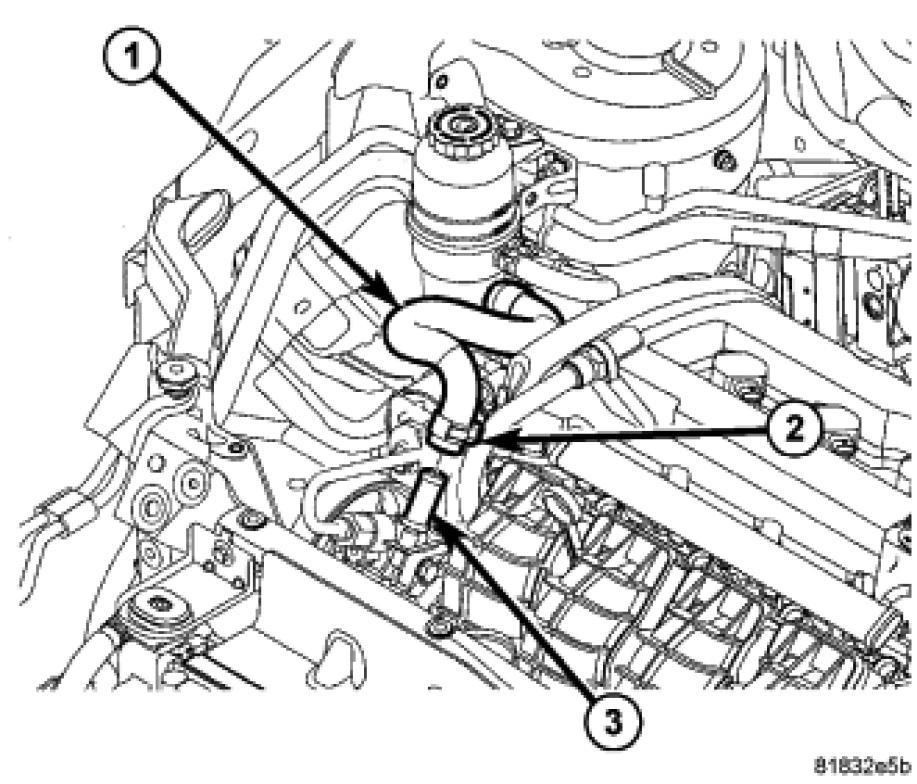

5. Remove the hose clamp (2) securing the supply hose (1) at the pump.
6. Remove the supply hose (1) from the pump (3).




7. Remove the drive belt (2). Accessory Drive Belt - Removal

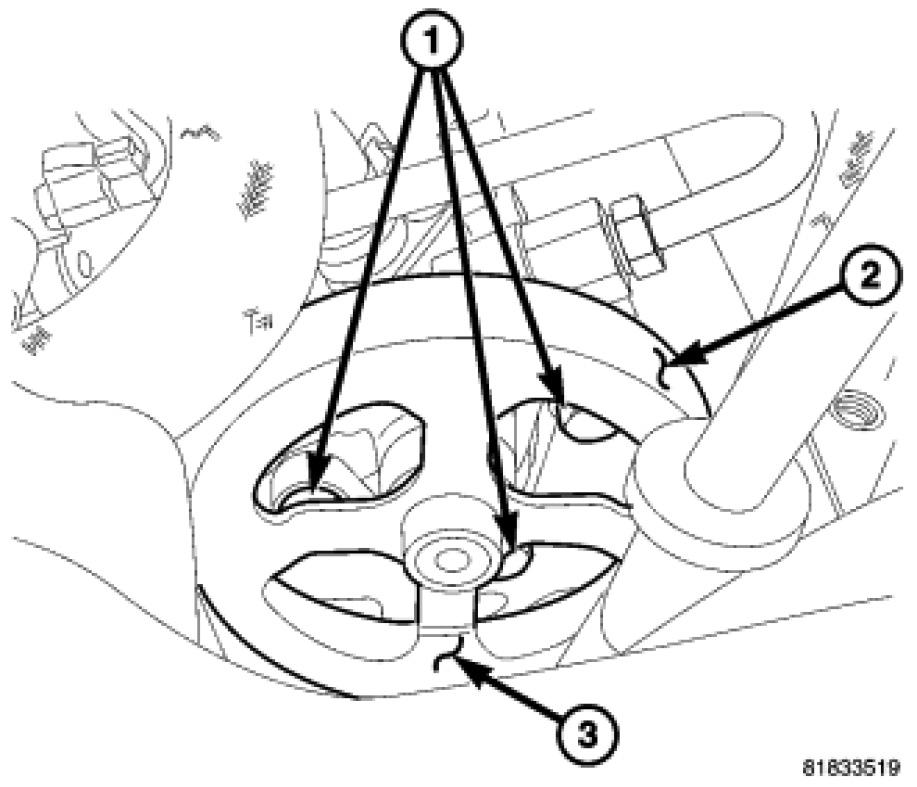

8. Remove the three pump mounting bolts (1) through the pulley (3) openings.
9. Remove the power steering pump.
