Battery Cables - Removal

REMOVAL

BATTERY HARNESS

WARNING:
To protect the hands from battery acid, a suitable pair of heavy duty rubber gloves should be worn when removing or servicing a battery. Safety glasses also should be worn.


WARNING: Remove metallic jewelry to avoid injury by accidental arcing of battery current.





CAUTION: The negative battery cable remote terminal (2) must be disconnected and isolated from the remote battery post (1) prior to service of the vehicle electrical systems. The negative battery cable remote terminal can be isolated by using the supplied isolation hole (3) in the terminal casing.





NOTE: Diesel battery shown, gasoline battery similar.

1. Disconnect and isolate the negative battery cable remote terminal from the remote battery post.
2. Raise vehicle on hoist, Maintenance.
3. Remove the battery and set aside, Battery - Removal.
4. On diesel engine equipped vehicles, disconnect the in-line connector to the instrument panel harness (2)




NOTE: Diesel battery harness shown, gasoline battery harness similar.

5. Lower the vehicle.

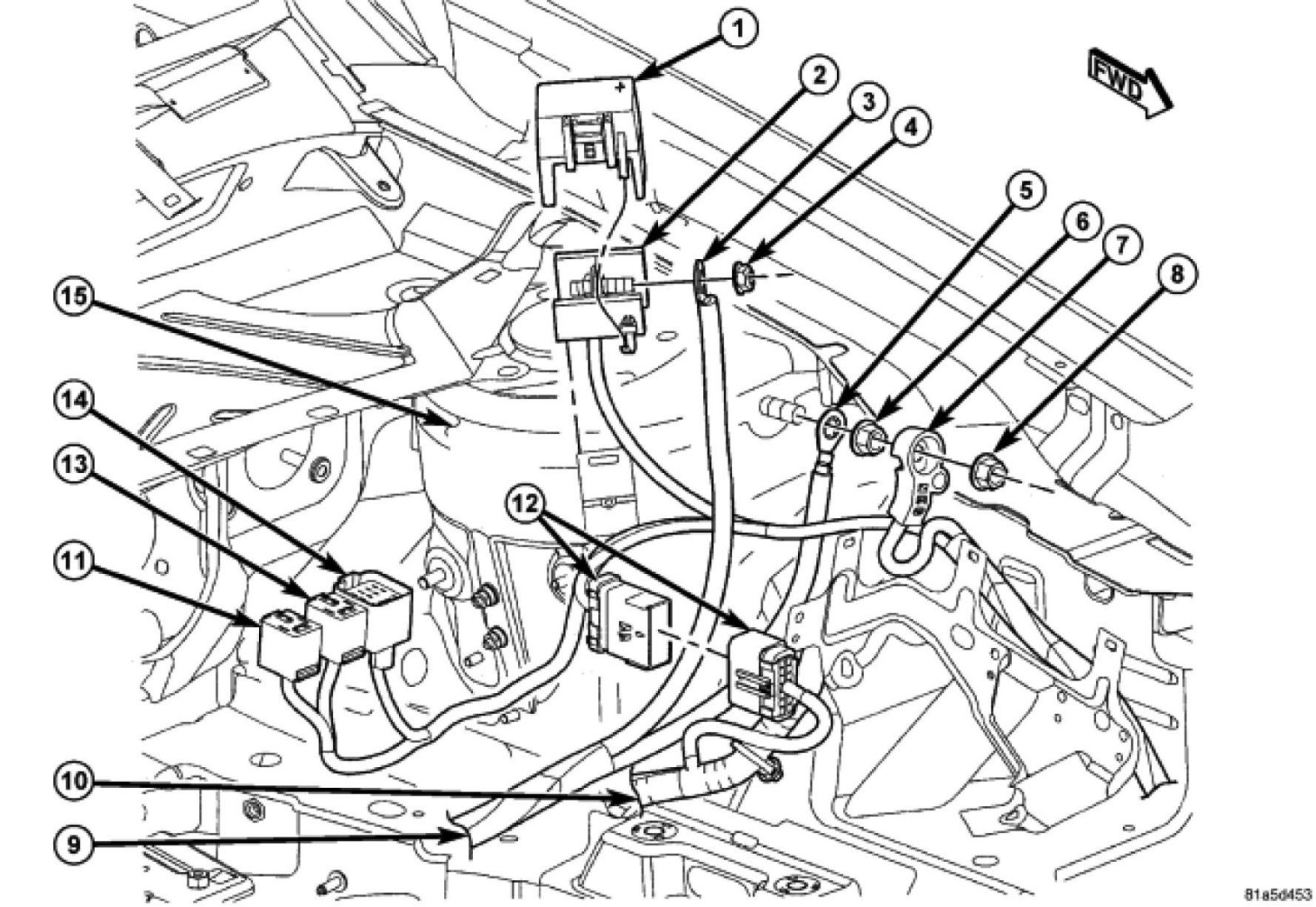

6. Remove the negative battery cable remote terminal nut (8) from the remote negative battery post. Remove the battery harness negative cable (7) from the remote negative battery post.
7. Remove the cover (1) from the remote positive battery terminal (2). Remove the starter harness positive cable retaining nut (4) and remove the cable (3) from the remote positive battery post.
8. Remove the remote positive battery terminal (2) from mounting bracket on the left strut tower (15) by lifting straight up.
9. On diesel engine equipped vehicles:
- Disconnect the glow plug module connector (14)
- Disconnect the cabin heater relay connectors (11 and 13)
- Disconnect the in-line connector to the instrument panel harness (12)

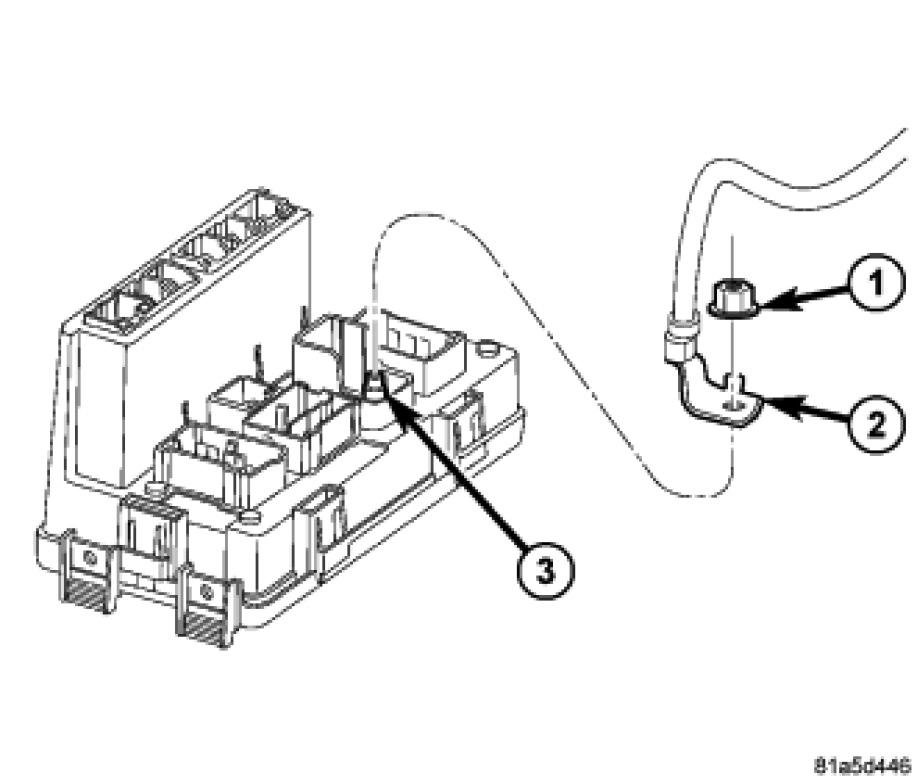

10. Remove the Totally Integrated Power Module (TIPM) from the mounting bracket and turn upside down. Remove the retaining nut (1) and remove the battery harness cable (2) from the TIPM stud (3).
11. One at a time, trace any remaining battery harness retaining pushpins, fasteners and routing clips until the harness is free from the vehicle.
12. Remove the battery harness from the vehicle.

STARTER HARNESS

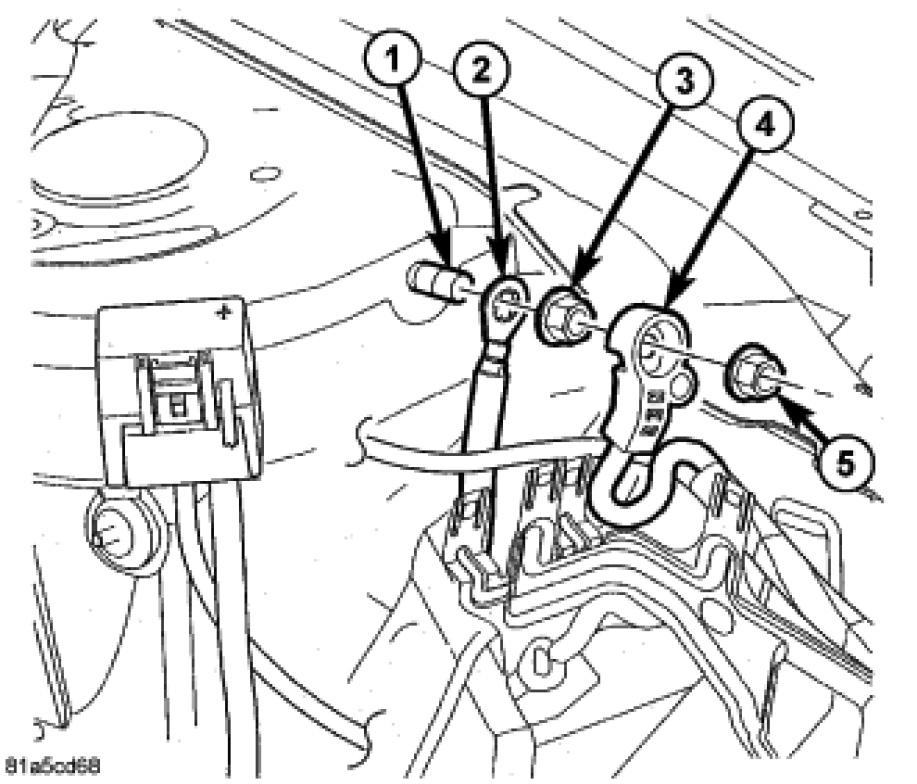

1. Remove the negative battery cable remote terminal nut (5) from the remote negative battery post (1). Remove and isolate the battery harness negative cable (4) on something other than the remote negative battery post (1).
2. Remove the starter harness negative cable retaining nut (3) and remove the cable (2) from the remote negative battery post (1).

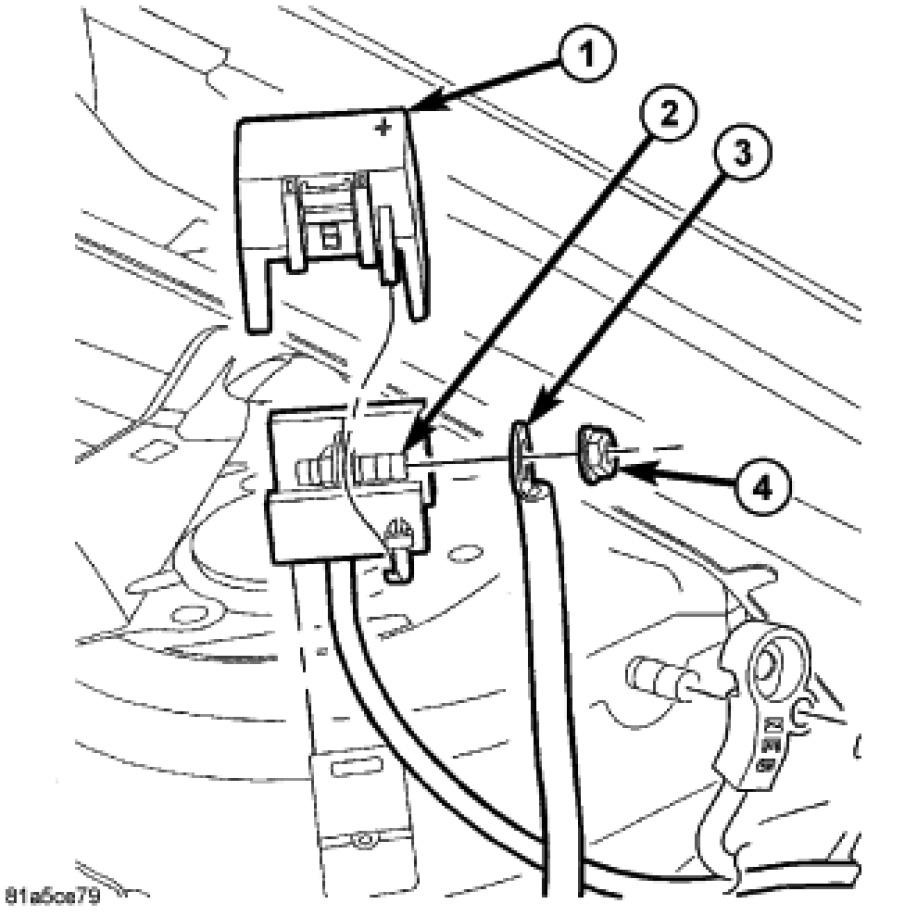

3. Remove the cover (1) from the remote positive battery terminal. Remove the starter harness positive cable retaining nut (4) and remove the cable (3) from the remote positive battery post (2).




4. Raise vehicle on hoist, Maintenance.

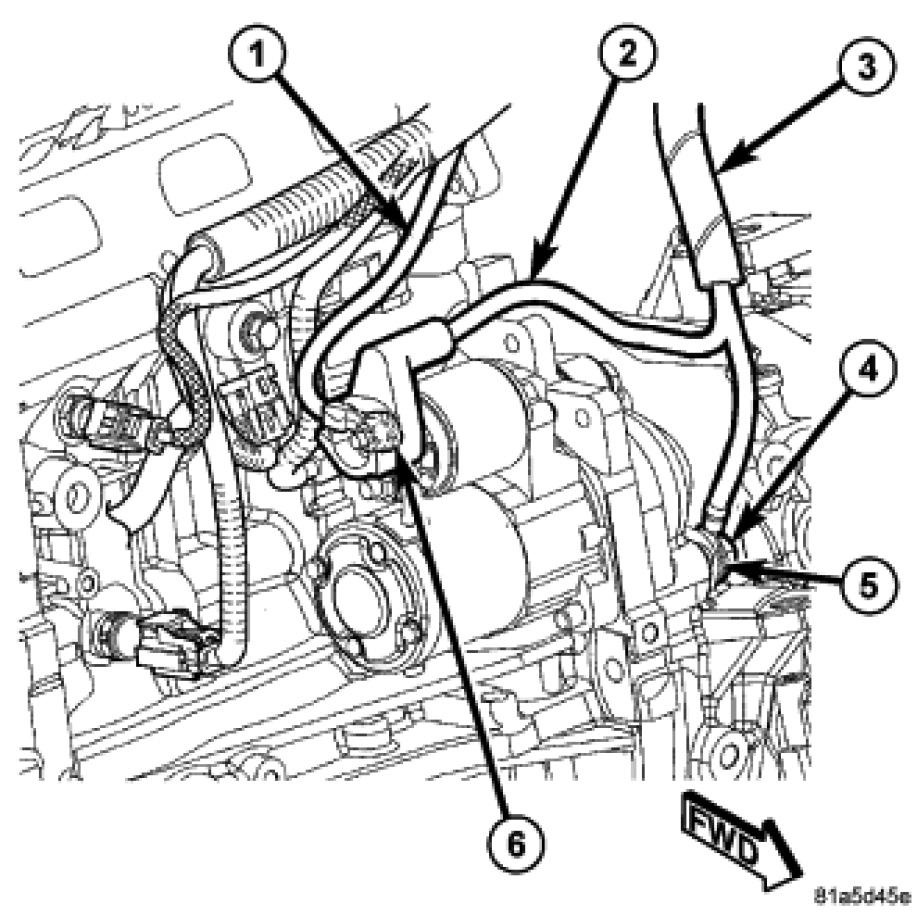

5. Remove the starter harness negative cable retaining bolt (4) and remove the cable (5) from the engine block.
6. Remove the starter harness positive cable retaining nut (6) and remove the cable (2) from the starter positive battery post.
7. One at a time, trace any remaining starter harness retaining pushpins, fasteners and routing clips until the harness is free from the vehicle.
8. Remove the starter harness (3) from the engine compartment.
