Side - C-Pillar Sensor

SIDE - C-PILLAR SENSOR

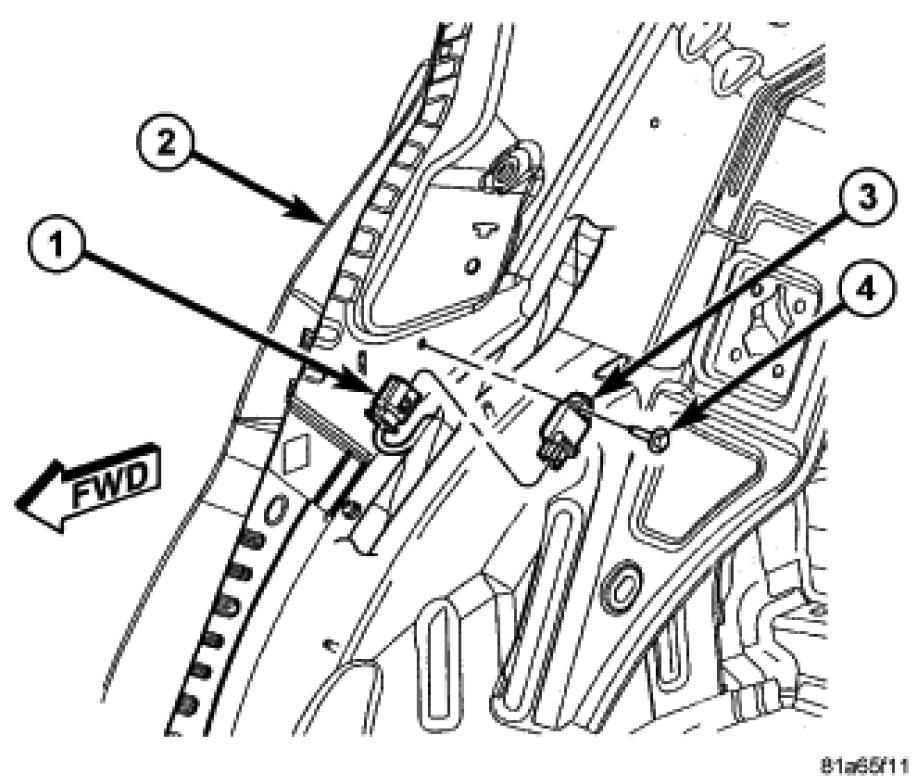

1. Position the side impact sensor (3) near the inner C-pillar.
2. Connect the harness connector (1) to the sensor (3).
3. Position the sensor onto the C-pillar (2).

NOTE: Be certain that the anti-rotation pin on the back of the sensor is engaged in the clearance hole on the C-pillar below the sensor mounting hole.

4. Install screw (4) that secures the sensor (3) to the C-pillar (2). Tighten the screw to 8 Nm (71 in. lbs.).
5. Install the rear quarter panel trim Lower Quarter Trim - Installation.

WARNING: Do not connect the battery negative cable Testing and Inspection. Serious or fatal injury may result if the system test is not performed first.
