ORC Jumper Harness

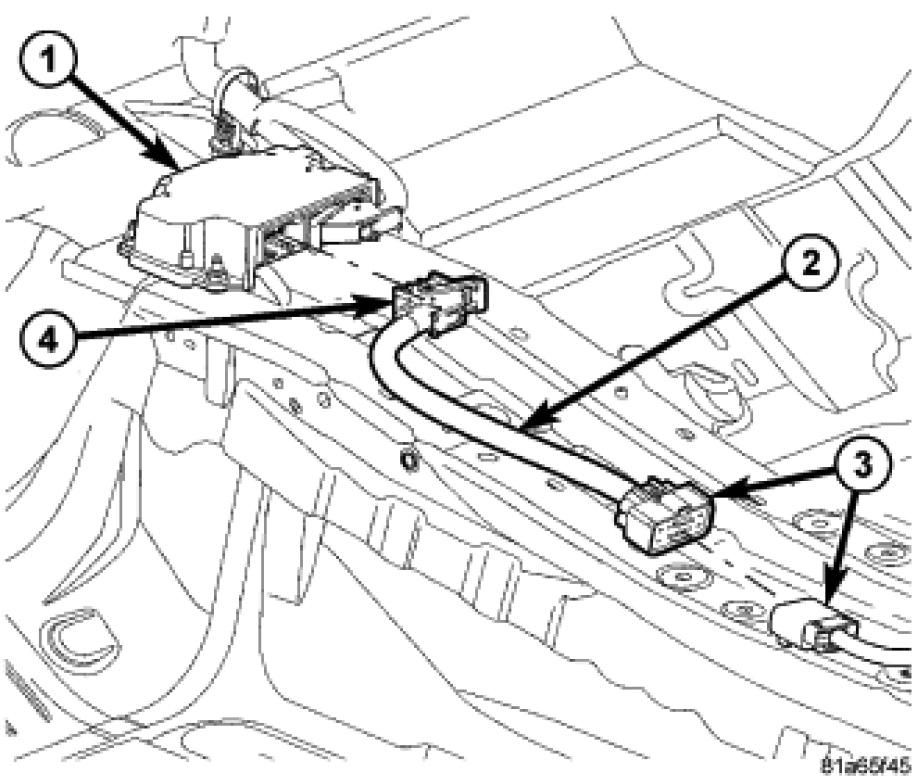

ORC JUMPER HARNESS





1. Connect the ORC jumper harness (2) to the body harness (3).
2. Connect the ORC jumper harness connector (4) to the ORC (1).
3. Install the center console Center Console - Installation.

WARNING: Do not connect the battery negative cable Refer to appropriate testing. Serious or fatal injury may result if the system test is not performed first.
