Description
Description
DESCRIPTION

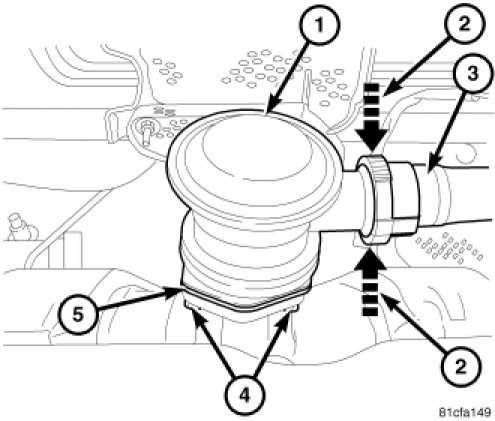

The
air injection check valve
(1) is a one-valve check valve that allows air to flow in one direction only. The valve is located at exhaust side of the engine at the top of the exhaust manifold.
