Removal
REMOVAL
1. Disconnect and isolate negative battery cable at battery.
NOTE: Clean dirt from sensor area prior to removal from air box.

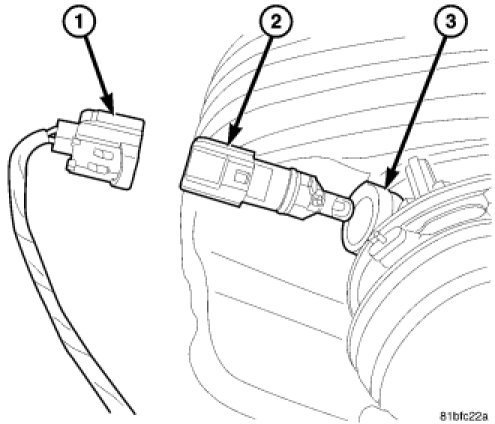

2. Disconnect the inlet air temperature sensor electrical connector (1).
3. Remove the inlet air temperature sensor (2) from the air box (3) by turning the sensor 1/4 turn in the counter - clockwise direction.
