Pressure Hose - 2.4L Engine

2.0L/2.4L ENGINE





NOTE: Before proceeding, Service Precautions.

1. Siphon as much fluid as possible from the power steering fluid reservoir.
2. Remove the engine appearance cover.
3. Remove the pressure hose (3) at the pump pressure port (5).
4. Remove the pressure hose routing bracket bolt (2) at the upper mount (8).
5. Raise and support the vehicle. Maintenance




6. Remove the return hose (1) at the return tube (2) and allow any fluid in the hose to drain. If equipped with a screw-clamp, be sure to save the original clamp for reinstallation.

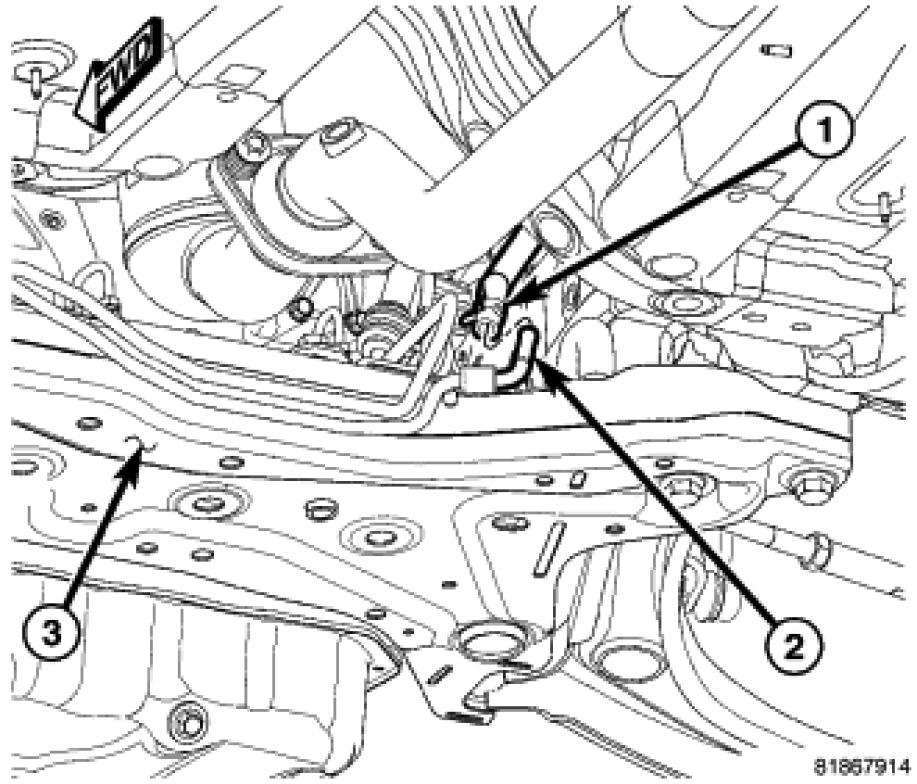

7. Remove the routing clamp screw (1) securing the pressure hose (2) to the right side of the crossmember (3).




8. Unscrew the tube nut (3), then remove the pressure hose (4) at the steering gear.




9. Remove the screws (1) securing the power steering hose routing clamps (2) to the rear of the crossmember (3).
10. Remove the power steering pressure hose from the vehicle.
