Lamp Unit Lens

LAMP UNIT LENS

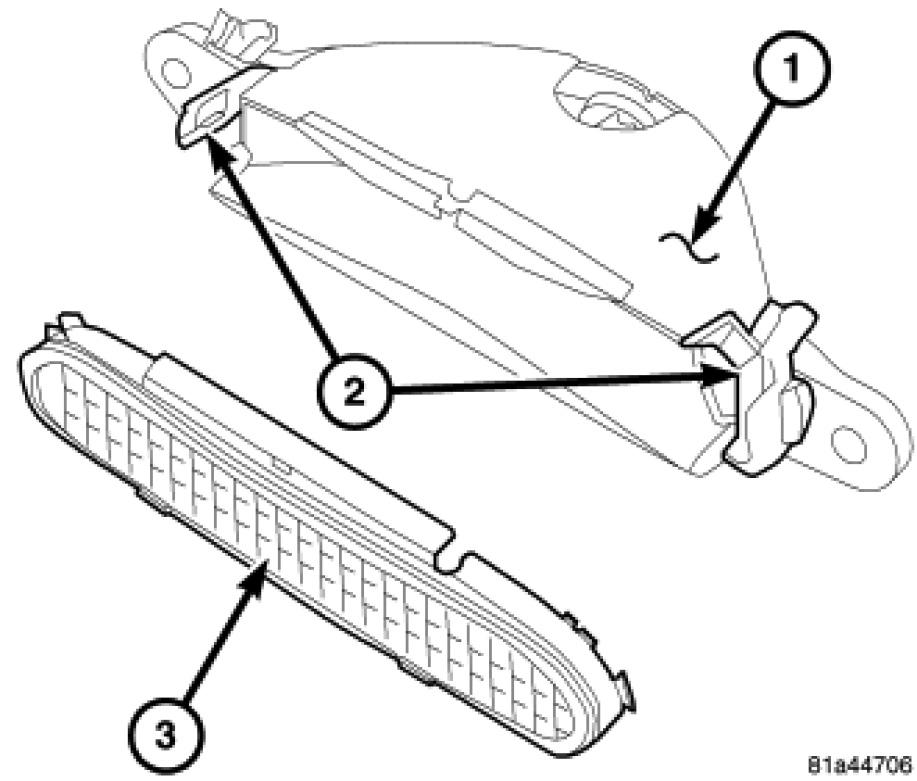

1. Position the CHMSL lamp lens over between the lamp unit tabs (2) and firmly snap into place.




2. Install CHMSL unit (2) to decklid (4).
3. Install screws (1) attaching CHMSL unit (2) to decklid (4).
4. Install socket into CHMSL.
5. Connect battery negative cable.
6. Close decklid.
