Removal

LAMP UNIT





1. Disconnect and isolate the battery negative cable.
2. Open decklid.

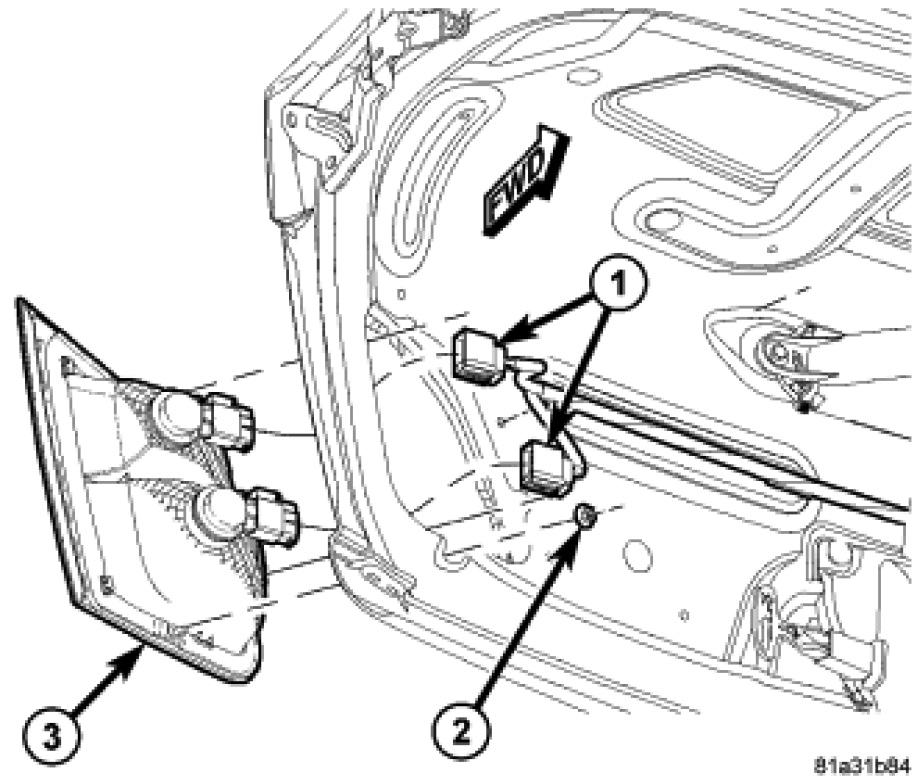

3. Disconnect the backup lamp electrical connector (1).
4. Grasp the backup lamp bulb socket and twist counterclockwise.
5. Pull bulb socket out of backup lamp unit.
6. Remove the three nuts (2) holding the backup lamp unit (3) to the decklid.
7. Separate the backup lamp (3) from the decklid.
