Removal

REMOVAL





The mask and lens are serviced together as a unit. If replacement is required for either of these components, they both will be replaced as a unit.

1. Remove instrument cluster Instrument Cluster - Removal.

NOTE: You must separate the cluster bezel from the cluster to remove the mask/lens.

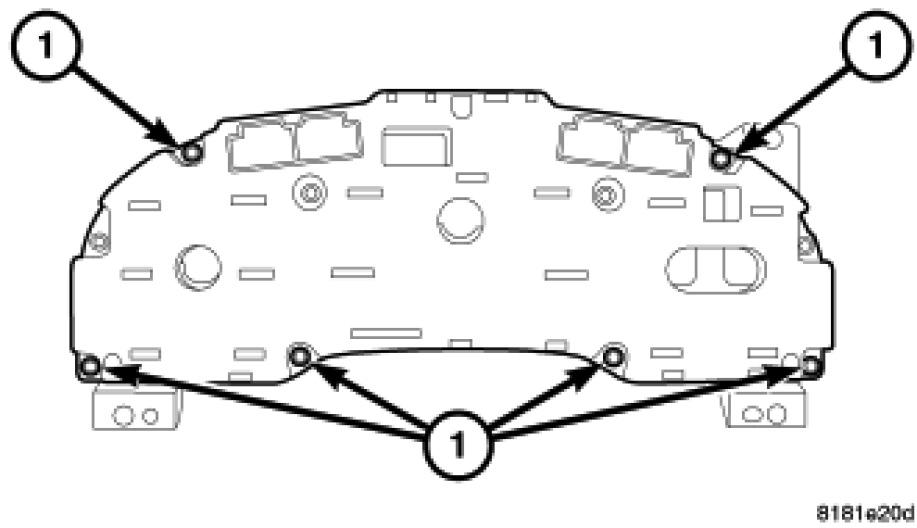

2. To separate the mask/lens from the cluster housing, remove the four screws (1) along the bottom back of the cluster and the two top screws (1).
