Removal

REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove the instrument panel center bezel Instrument Panel Center Bezel - Removal.

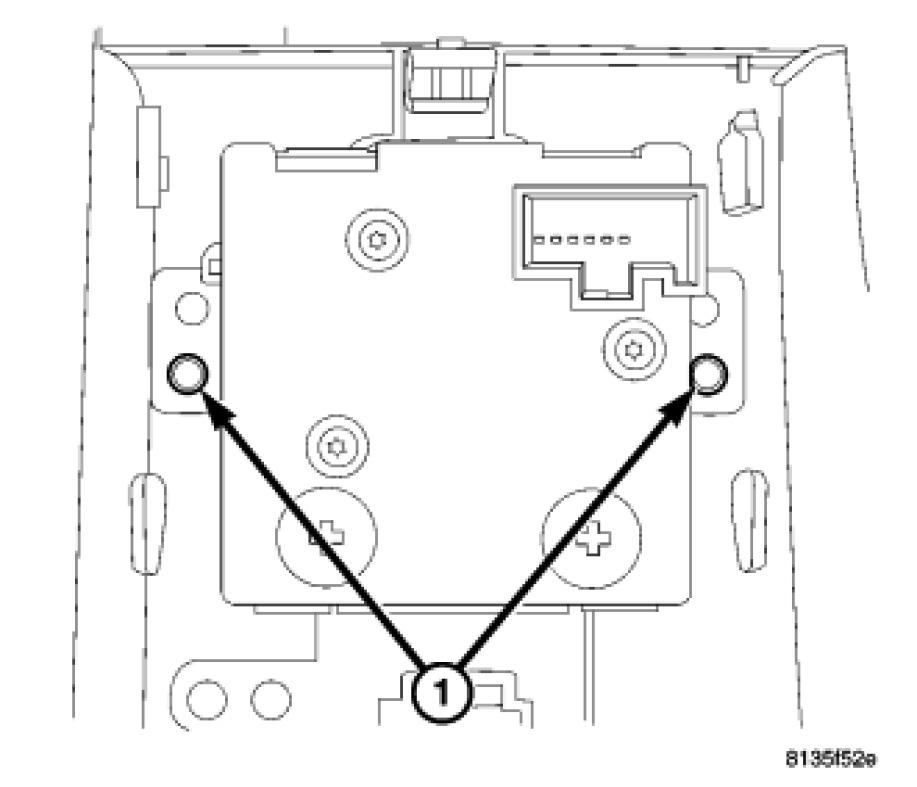

3. Remove the two retaining screws (1) holding the clock to the rear of the I/P Center Bezel.




4. To replace the clock illumination lamps (1), turn sockets (1) counterclockwise to remove lamp and socket (1).
