Exhaust Manifold - Removal

FRONT WHEEL DRIVE (FWD)

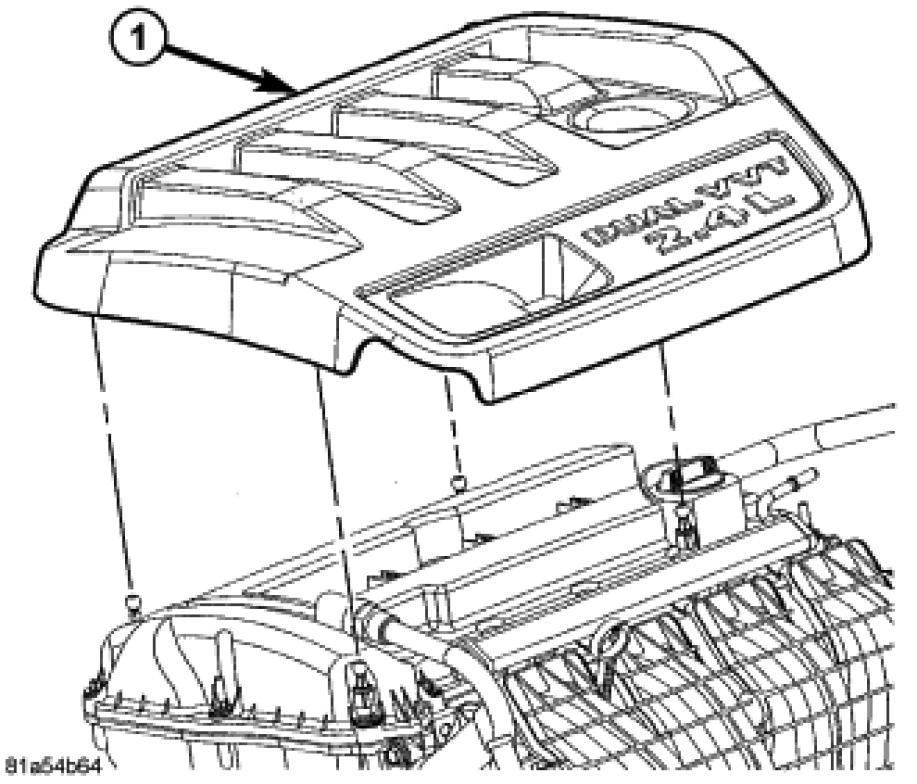

1. Remove engine cover (1).
2. Disconnect negative cable from battery.

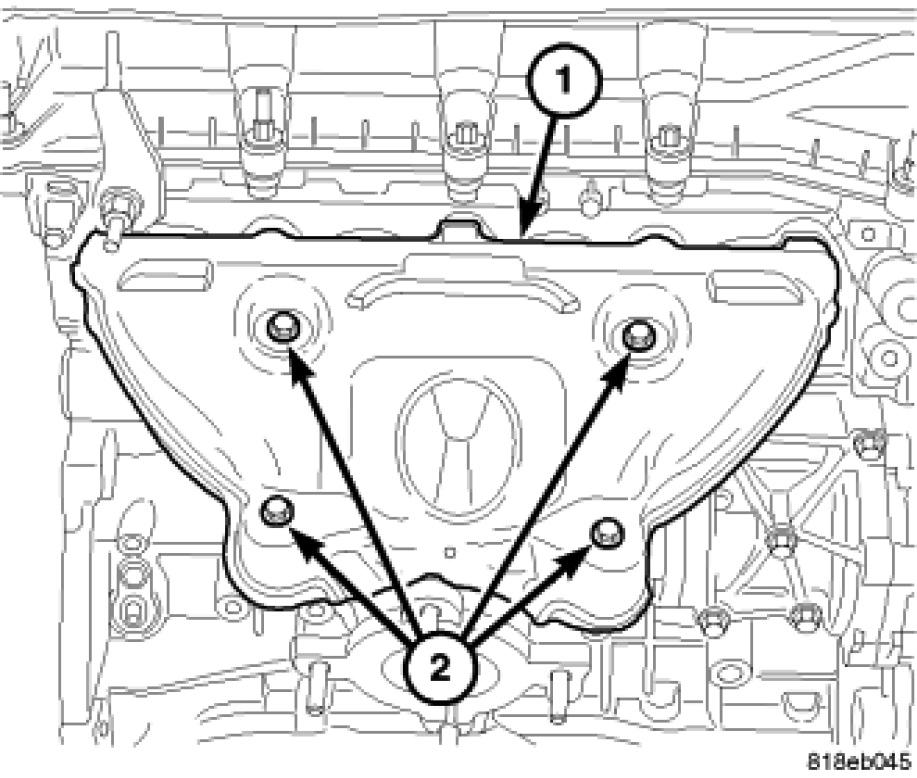

3. Remove bolts (2) attaching upper heat shield.
4. Remove upper heat shield (1).

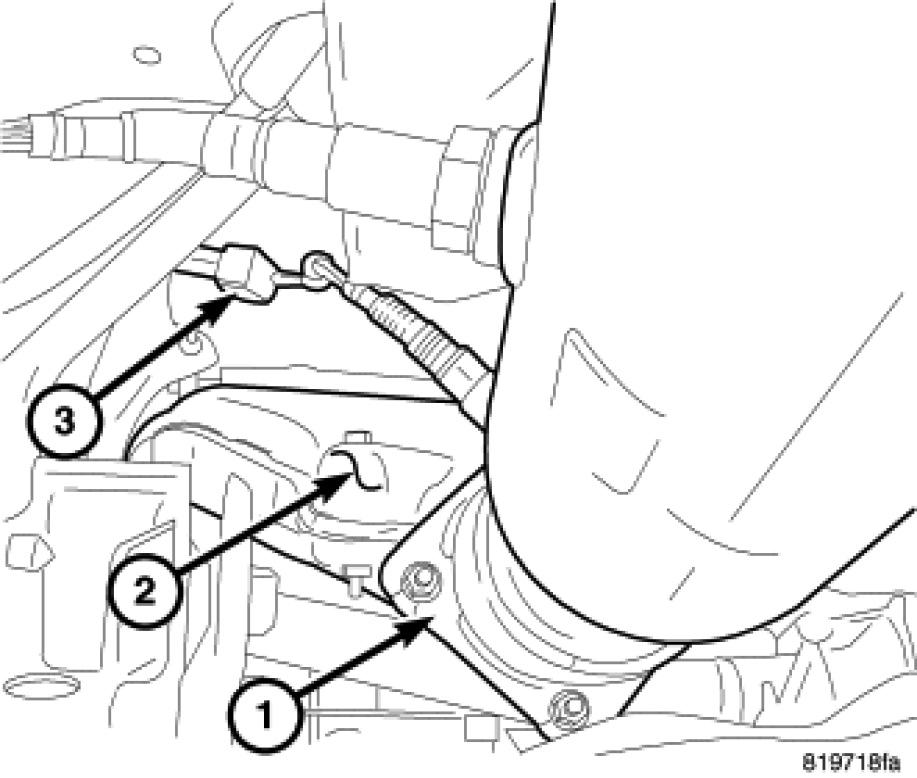

5. Disconnect exhaust pipe (1) from manifold.
6. Disconnect oxygen sensor electrical connector (3).

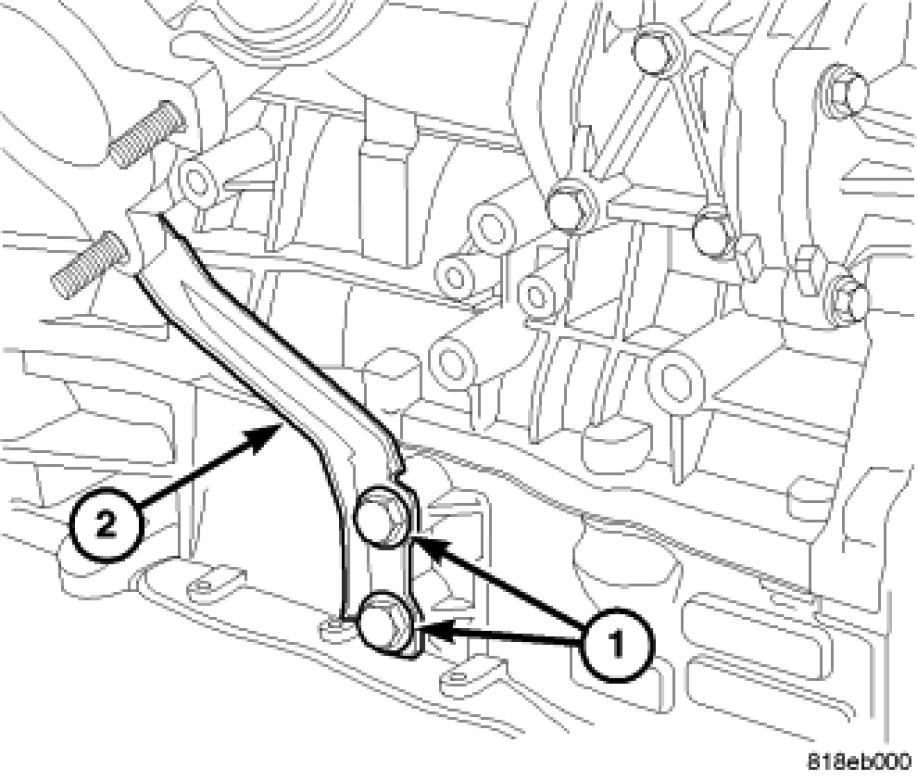

7. Remove manifold support bracket (2).
8. Remove lower exhaust manifold heat shield.

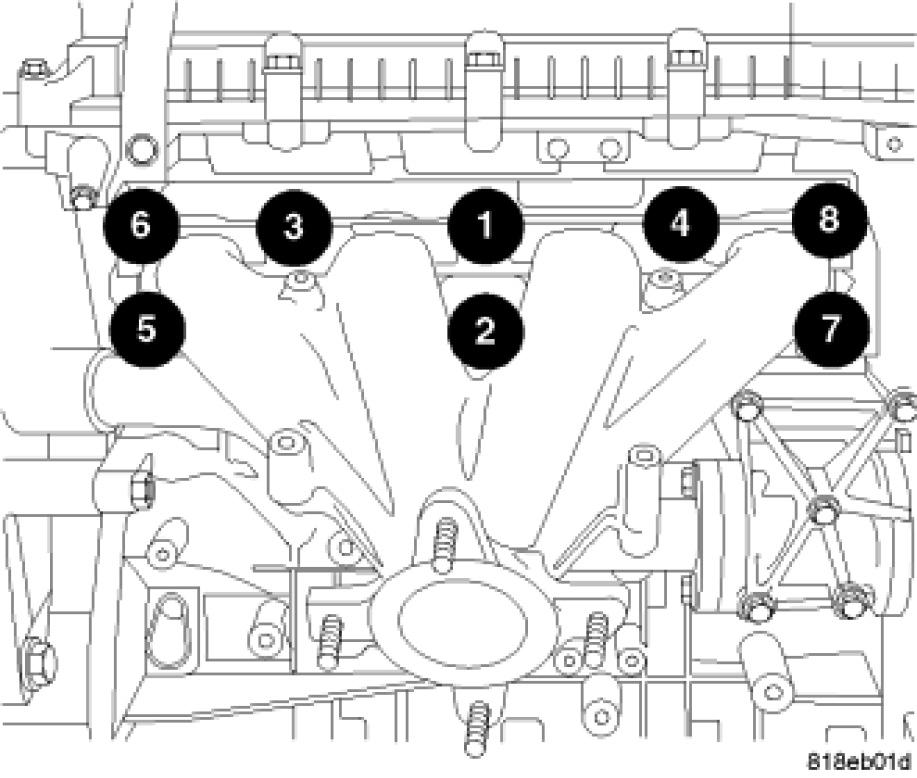

9. Remove exhaust manifold retaining fasteners.
10. Remove and discard manifold gasket.
