Water Pump - Removal

2.0/2.4L





1. Remove the accessory drive belt Accessory Drive Belt - Removal.
2. Drain engine coolant Service and Repair.
3. Raise vehicle Maintenance.
4. Remove accessory drive belt splash shield.

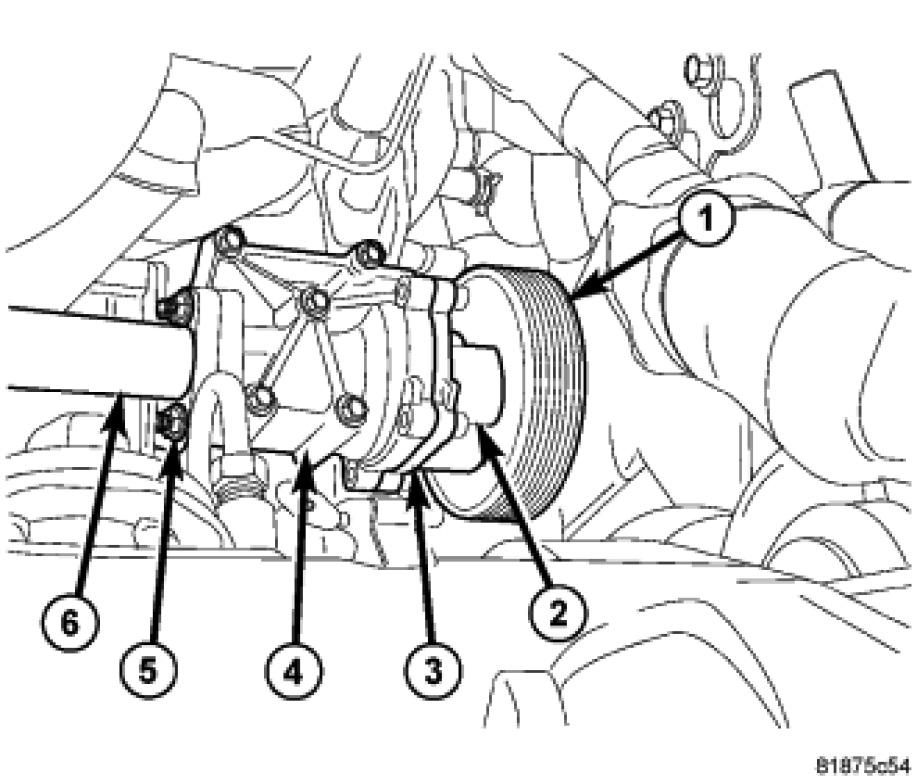

5. Remove screws attaching water pump pulley (1). Remove pulley (1).
6. Remove water pump mounting bolts (2).
7. Remove water pump (3).
