Crankshaft Sprocket







CRANKSHAFT SPROCKET





1. Remove timing chainTiming Chain & Sprockets - Removal.
2. Remove oil pan Engine Oil Pan - Removal.
3. Remove oil pump drive chain tensioner.
4. Remove oil pump drive chain.

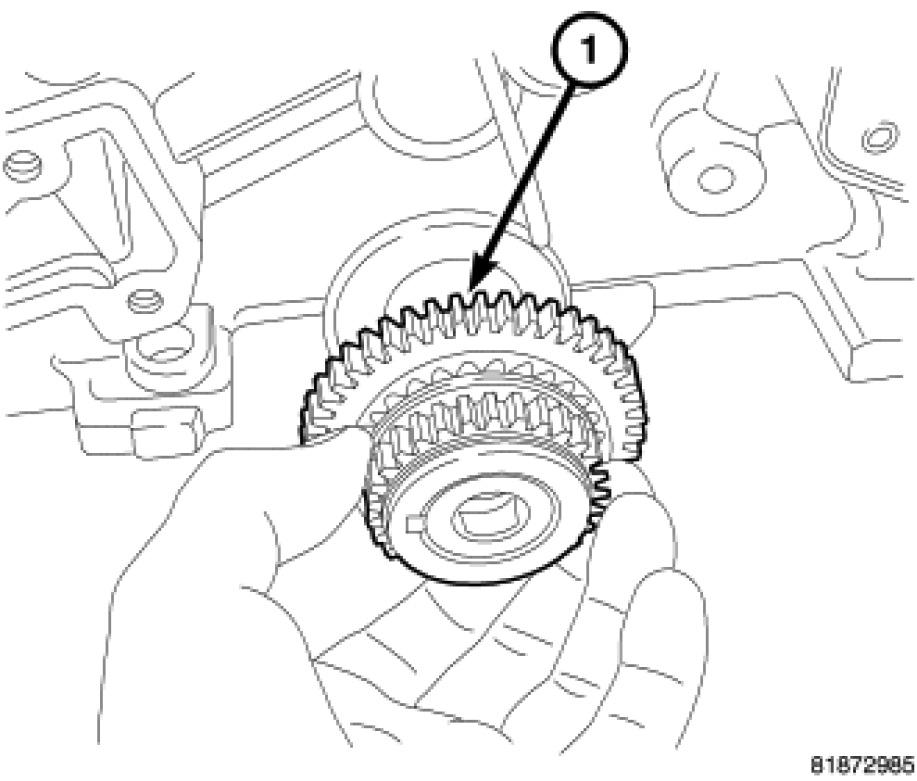

5. Remove crankshaft sprocket (1).
